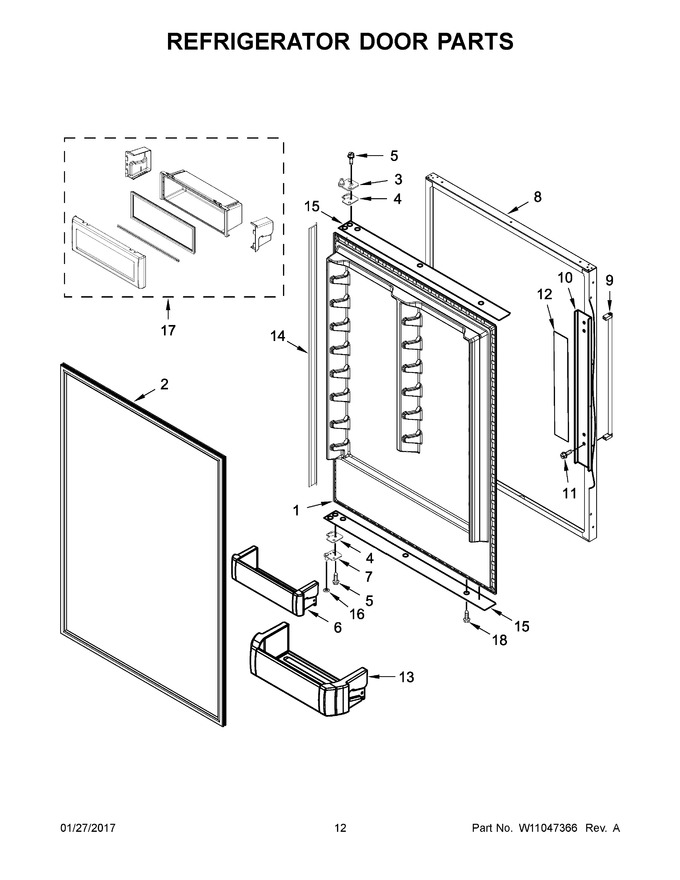

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10609631		Door, Refrigerator		Appelez-nous	-
2	W10803136		Gasket, Door (grey)   (Replaces: W10609679)				$ 332.93
3	W11673500		Assembly, Hinge (top)   (Replaces: W10485980)			Immediately	$ 108.07
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.02
6	W10529547		Bin, Door		Appelez-nous	-
7	2316807		Assembly, Bottom Hinge (left Hand)				$ 206.00
8	W10801506		Skin, Door (stainless)   (Replaces: W10541587)				$ 1,070.76
9	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 206.39
10	W10127710		Plate, Handle Door			Immediately	$ 24.70
11	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.76
12	2327469		Filler, Foam		Appelez-nous	-
13	W10529542		Bin, Gallon Door				$ 342.66
14	W10672076		Spacer, Door (side)		Appelez-nous	-
15	W10609682		Spacer, Door (top And Bottom)				$ 140.13
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.20
17	W10618265		Bin, Utility		Appelez-nous	-
18	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.88
7A	2316805		Assembly, Bottom Hinge (right Hand)				$ 204.69
