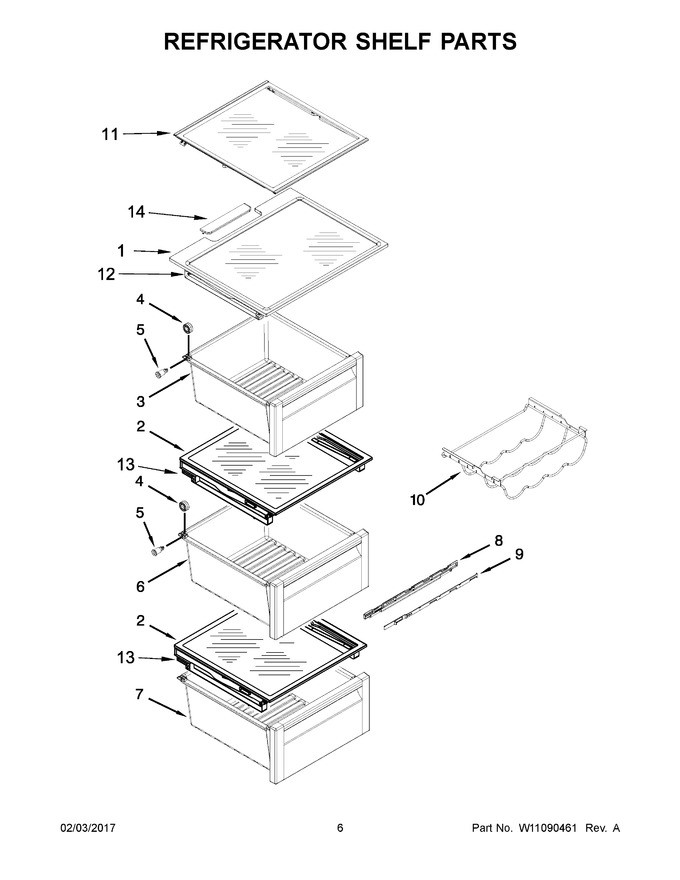

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10444456		Shelf, Snack Pan		Appelez-nous	-
2	W11214973		Cover, Assembly   (Replaces: W10290879)				$ 172.46
3	W10428772		Assembly, Snack Pan		Appelez-nous	-
4	W11164152		Roller, Pan   (Replaces: W10628713)			Immediately	$ 15.74
5	W11175807		Axle, Roller   (Replaces: W10628712)			Immediately	$ 17.90
6	W11672777		Crisper Pan Also Order 4 & 5   (Replaces: W10325539)		Appelez-nous	-
7	W10446646		Meat Pan Assembly				$ 241.64
8	W10257332		Housing, Humidity				$ 84.82
9	W10257334		Slide, Humidity				$ 61.15
10	W10395554		Wine Rack				$ 166.62
11	WPW10269156		Shelf Assembly   (Replaces: W10269156)				$ 159.82
12	W11766461		Rail, Track (left Side)   (Replaces: W10247942)				$ 35.54
13	W11678574		Rail, Track (left Side)   (Replaces: W10805083)			Immediately	$ 22.62
14	W10392413		Shelf, Filler (white)		Appelez-nous	-
12A	W11678966		Rail, Track (right Side)   (Replaces: W10247940)				$ 22.68
13A	W11685636		Rail, Track (right Side)   (Replaces: W10805082)			Immediately	$ 22.62
