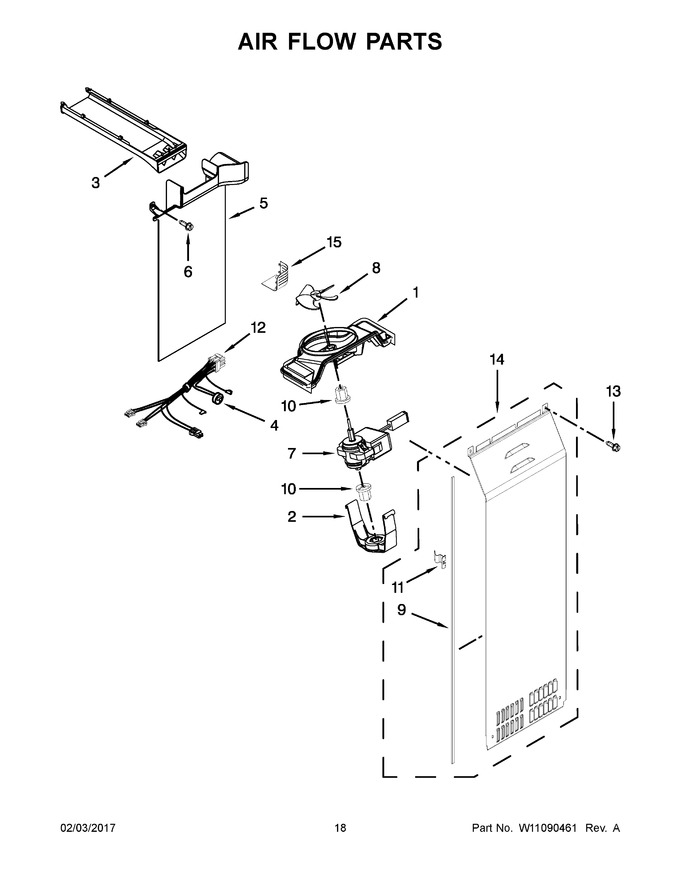

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11807265 | Scroll, Fan (Replaces: W10251462) |
|
$ 30.70 | |||||
| 2 | 8201663 | Retainer, Fan Motor (Replaces: 2223733) |
|
$ 159.27 | |||||
| 3 | W10260380 | Duct, Upper Air |
|
- | |||||
| 4 | N/P | Bi-metal Defrost (not Serviced) |
|
- | |||||
| 5 | WPW10382898 | Duct, Freezer Air (Replaces: W10382898) |
|
$ 86.42 | |||||
| 6 | WP489478 | Screw (Replaces: W10001260) |
|
$ 8.18 | |||||
| 7 | W11833137 | Motor, Fan (Replaces: W10556724) |
|
Immediately | $ 119.39 | ||||
| 8 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 9 | W10240370 | Gasket, Evaporator Cover |
|
- | |||||
| 10 | W11669856 | Grommet, Motor (Replaces: W10449920) |
|
Immediately | $ 15.93 | ||||
| 11 | W11232019 | Clip, Evaporator Cover (Replaces: W10369602) |
|
Immediately | $ 11.39 | ||||
| 12 | W11449066 | Assembly, Evaporator Fan Wire (includes Bi-metal Defrost) (Replaces: W10679946) |
|
$ 100.31 | |||||
| 13 | WP693995 | Screw (Replaces: W10142292) |
|
Immediately | $ 7.55 | ||||
| 14 | WPW10388268 | Cover, Evaporator (Replaces: W10388268) |
|
$ 256.42 | |||||
| 15 | W10260382 | Cover, Light |
|
$ 80.58 |
