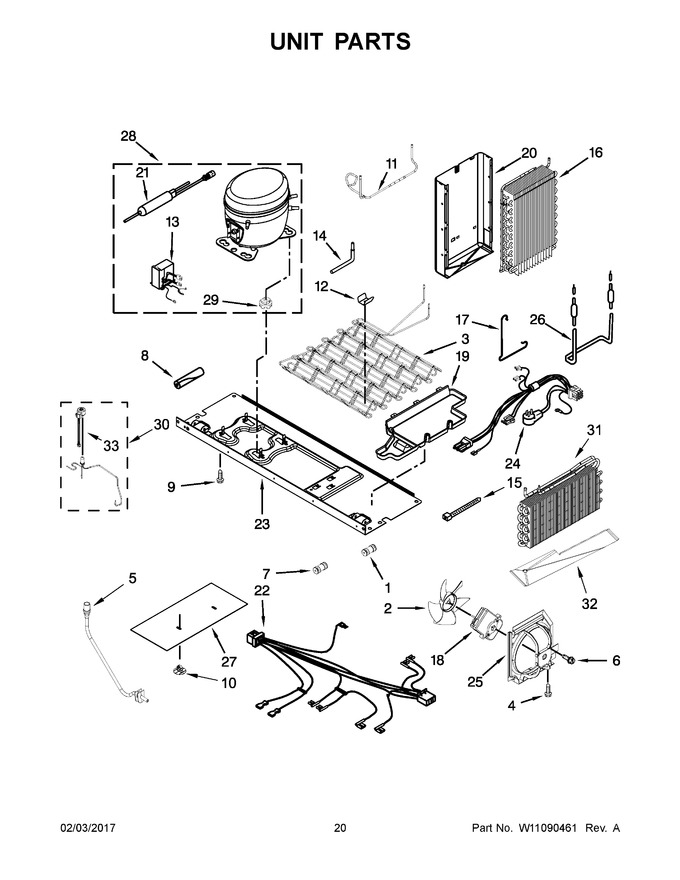

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | W11708426 | Assembly, Condenser (Replaces: W10240365) |
|
$ 271.19 | |||||
| 4 | W10142255 | Screw |
|
- | |||||
| 5 | W11409190 | Tube, Drain (Replaces: W10862105) |
|
Immediately | $ 65.34 | ||||
| 6 | WPW10171469 | Screw (Replaces: W10171469) |
|
Immediately | $ 11.61 | ||||
| 7 | WPW10277958 | Connector, Water (Replaces: W10277958) |
|
Immediately | $ 69.57 | ||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 9 | 3400524 | Bolt (Replaces: W10142287) |
|
$ 13.28 | |||||
| 10 | W10815861 | Clip, Bottom Cover |
|
$ 15.80 | |||||
| 11 | WPW10223328 | Tube, Suction (Replaces: W10223328) |
|
$ 92.85 | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 13 | W11087200 | Assembly, Inverter Box (Replaces: W10710090) |
|
Immediately | $ 228.40 | ||||
| 14 | 2325479 | Tube, Process |
|
- | |||||
| 15 | WP2205813 | Tie, Wire (Replaces: 2205813) |
|
$ 8.11 | |||||
| 16 | W10251503 | Evaporator |
|
- | |||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | W11127829 | Motor, Condenser Fan (Replaces: W10527155) |
|
Immediately | $ 185.05 | ||||
| 19 | W10714793 | Tray, Evaporator |
|
$ 164.33 | |||||
| 20 | W10348669 | Heat Shield |
|
- | |||||
| 21 | WPW10143759 | Drier (Replaces: W10286069) |
|
Immediately | $ 30.78 | ||||
| 22 | W11700341 | Assembly, Unit Wire (Replaces: W10679948) |
|
$ 102.07 | |||||
| 23 | W10680691 | Baseplate |
|
- | |||||
| 24 | WPW10242407 | Cord, Power (Replaces: W10242407) |
|
$ 80.97 | |||||
| 25 | WPW10251467 | Baffle, Air (Replaces: W10251467) |
|
$ 84.80 | |||||
| 26 | WPW10495967 | Heater, Defrost (Replaces: W10495967) |
|
Immediately | $ 167.33 | ||||
| 27 | W10284726 | Cover, Unit Bottom |
|
$ 115.91 | |||||
| 28 | W10779331 | Compressor (Replaces: W10695094) |
|
$ 1,044.35 | |||||
| 29 | W11661108 | Grommet (Replaces: 2183042) |
|
$ 15.21 | |||||
| 30 | W11590197 | Assembly, Valve Body (Replaces: W10740748) |
|
Immediately | $ 114.11 | ||||
| 31 | WPW10643261 | Evaporator, Dual-rc (Replaces: W10643261) |
|
Immediately | $ 343.44 | ||||
| 32 | W11720794 | Pan, Drip (Replaces: W10317862) |
|
$ 147.99 | |||||
| 33 | W11429989 | Coil, 3 Way Valve (Replaces: W10868747) |
|
Immediately | $ 215.28 | ||||
| NI | N/P | Refrigerant Charge 5.75 Oz. (r-134a) |
|
- |
