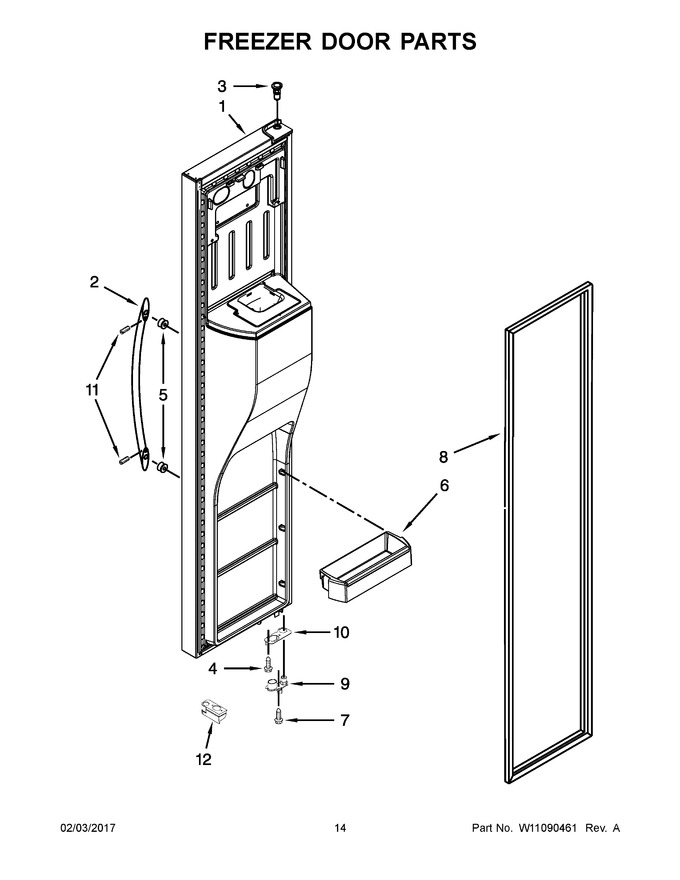

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10755642		Door, Freezer (includes Item 8 And Dispenser Front Parts) (white)   (Replaces: W10755642)		Appelez-nous	-
2	W10899551		Handle (stainless)   (Replaces: W10678291)			Immediately	$ 188.82
3	WP2182181		Thimble, Top   (Replaces: 2200086)				$ 8.15
4	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
5	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
6	WPW10308389		Door Bin   (Replaces: W10308389)				$ 70.69
7	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
8	WPW10247885		Gasket, Door (beige)   (Replaces: W10247885)				$ 347.07
9	WPW10248015		Closer, Upper Cam Door (white)   (Replaces: W10248015)				$ 12.85
10	W11293380		Bracket, Door Stop   (Replaces: W10247907)				$ 69.21
11	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
12	W10632059		Cover, Door Stop (white)				$ 23.46
12A	W10632060		Cover, Door Stop (black)				$ 22.30
12B	WPW10632062		Cover, Door Stop (grey)   (Replaces: W10632062)				$ 7.55
1A	LW10812471		Door, Freezer (includes Item 8 And Dispenser Front Parts) (black)   (Replaces: W10812471)		Appelez-nous	-
1B	LW10755706		Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless)   (Replaces: W10755706)		Appelez-nous	-
8A	WPW10249913		Gasket, Door (black)   (Replaces: W10249913)				$ 321.05
8B	WPW10355585		Gasket, Door (grey)   (Replaces: W10249917)				$ 337.27
9A	W11607100		Closer, Upper Cam Door (black)   (Replaces: W10257204)			Immediately	$ 13.98
9B	WPW10257206		Closer, Upper Cam Door (grey)   (Replaces: W10257206)			Immediately	$ 13.18
