SELECT A DIAGRAM

02 - Cabinet, Optional

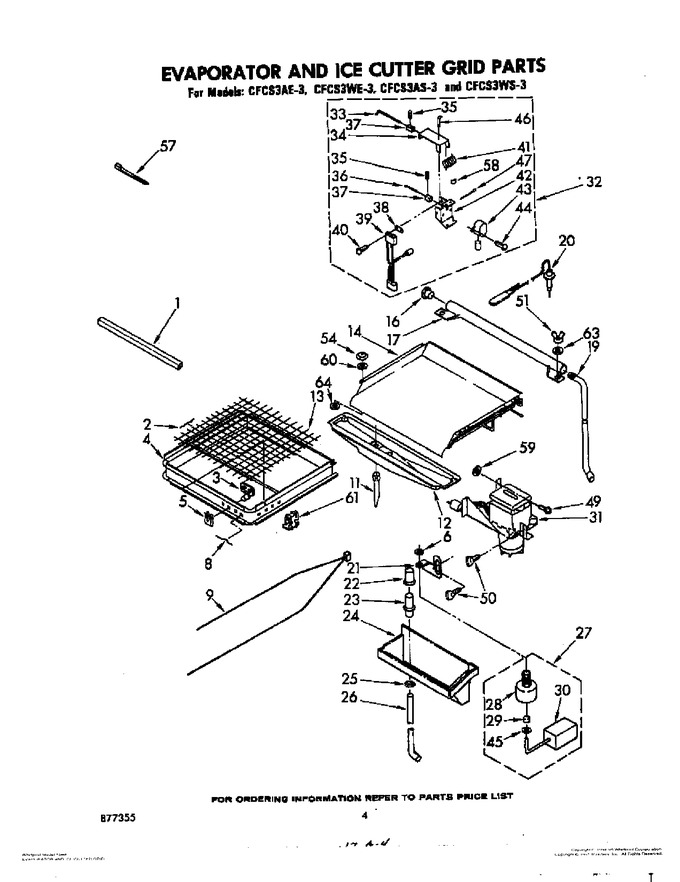

03 - Evaporator And Ice Cutter Grid


04 - Unit


05 - Section


06 - Pump


07 - Terminal Box


08 - Liner


09 - Front Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	751954		Deflector, Ice Slab		Appelez-nous	-
2	587111		Pin, Cutter Wire ((3/4`` Grid) (43))		Appelez-nous	-
2	587423		Pin, Cutter Wire (1-2/4`` Grid (9))		Appelez-nous	-
2	587424		Pin, Cutter Wire (1-2/4 Grid (13))		Appelez-nous	-
3	598277		Insulator, Grid 3/4 Grid (48)		Appelez-nous	-
5	564072		Clip, Tension 3/4 Grid (45) 1-2/4 Grid (24)		Appelez-nous	-
6	681334		Washer		Appelez-nous	-
8	587112		Pin, Cutter Wire (4)		Appelez-nous	-
9	757044		Harness, Grid Connecting ((3/4`` Grid))		Appelez-nous	-
9	587613		Harness, Grid Connecting ((1-2/4`` Grid))		Appelez-nous	-
11	756691		Pipe, Stand		Appelez-nous	-
12	593094		Trough, Water		Appelez-nous	-
13	569968		Wire Kit, Grid Cutter ((1-2/4`` Grid))		Appelez-nous	-
13	569969		Wire Kit, Grid Cutter ((3/4`` Grid))		Appelez-nous	-
14	757000		Evaporator		Appelez-nous	-
16	583481		Seal, Dispenser		Appelez-nous	-
17	583459		Dispenser, Water		Appelez-nous	-
19	756181		Hose, Dispenser		Appelez-nous	-
20	756772		Valve, Thermo Expansion		Appelez-nous	-
21	587675		Bracket, Float Valve		Appelez-nous	-
22	562662		Cap, Siphon		Appelez-nous	-
23	577430		Tube, Siphon		Appelez-nous	-
24	585148		Pan, Water		Appelez-nous	-
25	COMM PART		Nut, Siphon Tube   (Replaces: 583266)		Appelez-nous	-
26	598463		Hose, Siphon		Appelez-nous	-
27	593654		Valve, Float		Appelez-nous	-
28	978862		Body, Valve		Appelez-nous	-
29	588794		Plunger		Appelez-nous	-
30	588793		Float & Stem Assembly		Appelez-nous	-
32	598369		Control Assembly (ice Thickness)		Appelez-nous	-
33	607815		Shaft, Ice Thickness Control		Appelez-nous	-
34	587293		Bracket, Shaft		Appelez-nous	-
35	595330		Setscrew (4)		Appelez-nous	-
36	607816		Shaft, Flexible		Appelez-nous	-
37	572489		Coupling, Shaft (2)		Appelez-nous	-
38	587996		Spacer		Appelez-nous	-
39	587889		Switch & Harness (ice Thickness Control)		Appelez-nous	-
40	681433		Screw		Appelez-nous	-
41	560861		Spring, Hold Down		Appelez-nous	-
42	607811		Bracket, Motor		Appelez-nous	-
43	577540		Motor, Ice Thickness Control		Appelez-nous	-
44	680854		Screw		Appelez-nous	-
45	588842		Washer		Appelez-nous	-
46	755406		Screw, Adjusting		Appelez-nous	-
47	680668		Pin, Cotter		Appelez-nous	-
49	595095		Screw, 10-32 X 3/8 (2)		Appelez-nous	-
50	681302		Screw, Thumb		Appelez-nous	-
51	681584		Nut, Wing (8-32)		Appelez-nous	-
54	WP486255		Nut, Cap (3)   (Replaces: 595181)				$ 6.47
57	WPW10339879		Tie, Cable   (Replaces: 596702)				$ 8.30
58	596681		Clamp, Wire		Appelez-nous	-
59	680656		Washer		Appelez-nous	-
60	562336		Washer, Cup		Appelez-nous	-
61	756058		Clip, Grid		Appelez-nous	-
63	680396		Washer, 5/8 X 3/16 X .020		Appelez-nous	-
64	486260		Washer		Appelez-nous	-
