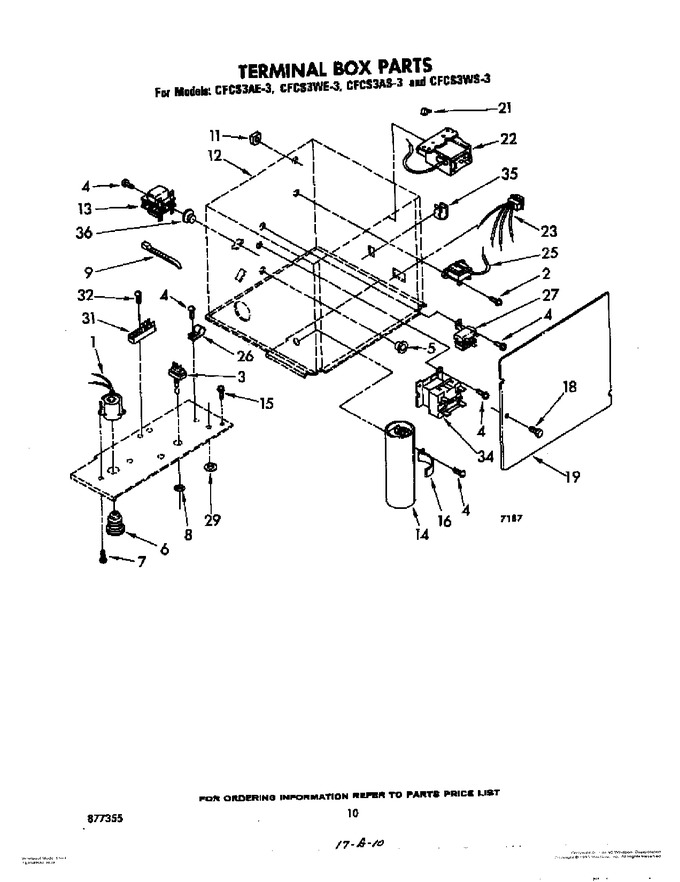

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	593479		Receptacle, Fustat		Appelez-nous	-
2	WP313808		Screw, 6-32 X 1/4   (Replaces: 680722)				$ 8.30
3	560940		Switch, Service		Appelez-nous	-
4	WP90767		Screw, 8-32 X 3/8   (Replaces: 681167)			Immediately	$ 8.25
5	596589		Bushing, Snap		Appelez-nous	-
6	596285		Fustat, 8 Amp		Appelez-nous	-
7	00685135		Screw, 10-32 X 3/8 (2)   (Replaces: 680604)			Immediately	$ 102.52
8	596021		Nut, Switch (2)		Appelez-nous	-
9	WPW10339879		Tie, Cable (4)   (Replaces: 596702)				$ 8.30
11	573333		Grommet		Appelez-nous	-
13	755722		Transformer (14.25 V)		Appelez-nous	-
14	572805		Capacitor, Start		Appelez-nous	-
15	681187		Screw, Ground		Appelez-nous	-
16	560767		Clamp, Capacitor		Appelez-nous	-
18	WP488787		Screw, 8-18 X 3/8   (Replaces: 680968)				$ 11.26
19	755934		Cover, Terminal Box		Appelez-nous	-
21	596216		Clip		Appelez-nous	-
22	751698		Switch, Hi-pressure (cfcs3we-3)		Appelez-nous	-
23	756043		Harness, Control		Appelez-nous	-
25	593328		Thermostat, Bin Control		Appelez-nous	-
26	596276		Clamp, Wire		Appelez-nous	-
27	572809		Relay, Compresor Start		Appelez-nous	-
29	596416		Bushing, Snap (4)		Appelez-nous	-
31	756195		Terminal Board		Appelez-nous	-
32	680603		Screw, 8-32 X 5/8		Appelez-nous	-
34	583095		Relay, Defrost Control		Appelez-nous	-
35	596752		Retainer, Wire		Appelez-nous	-
36	596380		Bushing, Snap (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
