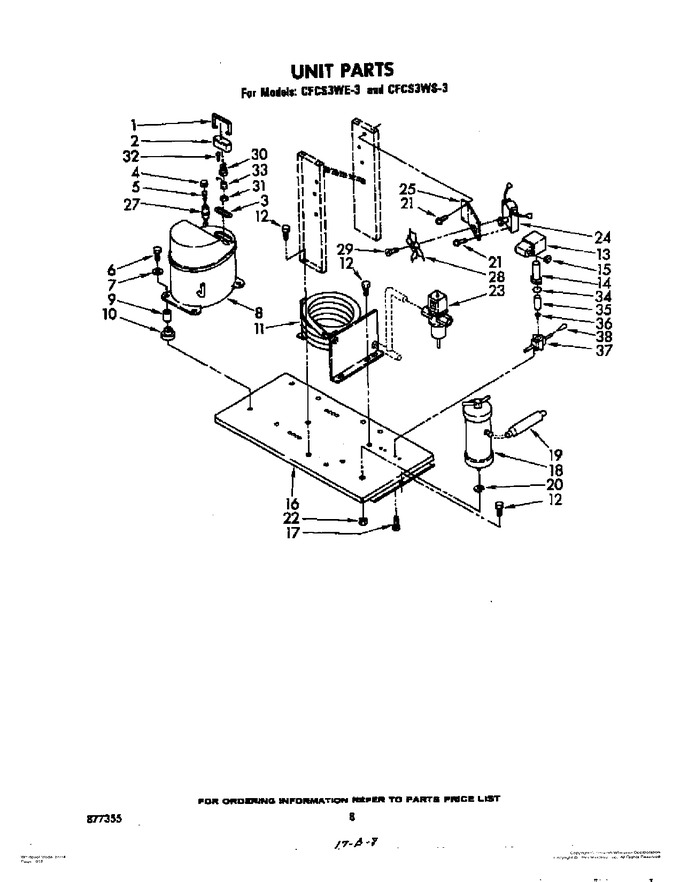

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	561858		Strap, Bale		Appelez-nous	-
2	751181		Cover, Terminal		Appelez-nous	-
3	561857		Gasket, Cover		Appelez-nous	-
4	561957		Cap, Valve		Appelez-nous	-
5	561958		Core, Valve		Appelez-nous	-
6	681342		Screw		Appelez-nous	-
7	595230		Washer (4)		Appelez-nous	-
8	569285		Compressor, Service		Appelez-nous	-
9	583536		Sleeve, Grommet (4)		Appelez-nous	-
10	583625		Grommet (4)		Appelez-nous	-
11	585121		Condenser		Appelez-nous	-
12	681305		Screw, 1/4-20 X 1/2		Appelez-nous	-
13	702368		Coil, Solenoid		Appelez-nous	-
14	DE81-04419A		Bonnet Assembly   (Replaces: 702381)				$ 540.74
15	596380		Bushing, Snap		Appelez-nous	-
16	755919		Base, Unit		Appelez-nous	-
17	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 595395)				$ 7.89
18	572803		Receiver Assembly		Appelez-nous	-
19	752801		Drier		Appelez-nous	-
20	681467		Washer, Lock		Appelez-nous	-
21	487313		Screw		Appelez-nous	-
22	595172		Nut (1)		Appelez-nous	-
23	585386		Valve, Water		Appelez-nous	-
24	756048		Motor, Fan		Appelez-nous	-
25	755938		Bracket, Motor		Appelez-nous	-
27	561955		Body, Valve		Appelez-nous	-
28	513964		Blade, Fan		Appelez-nous	-
29	00487887		Screw   (Replaces: 487887)				$ 244.80
30	561702		Spring, Overload		Appelez-nous	-
31	561855		Adapter, Overload		Appelez-nous	-
32	595036		Screw, 6-32 X 1/4		Appelez-nous	-
33	598546		Overload		Appelez-nous	-
34	702382		Seal, Bonnet		Appelez-nous	-
35	702371		Plunger		Appelez-nous	-
36	702383		Diaphragm		Appelez-nous	-
37	702384		Body, Solenoid		Appelez-nous	-
38	702389		Strainer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
