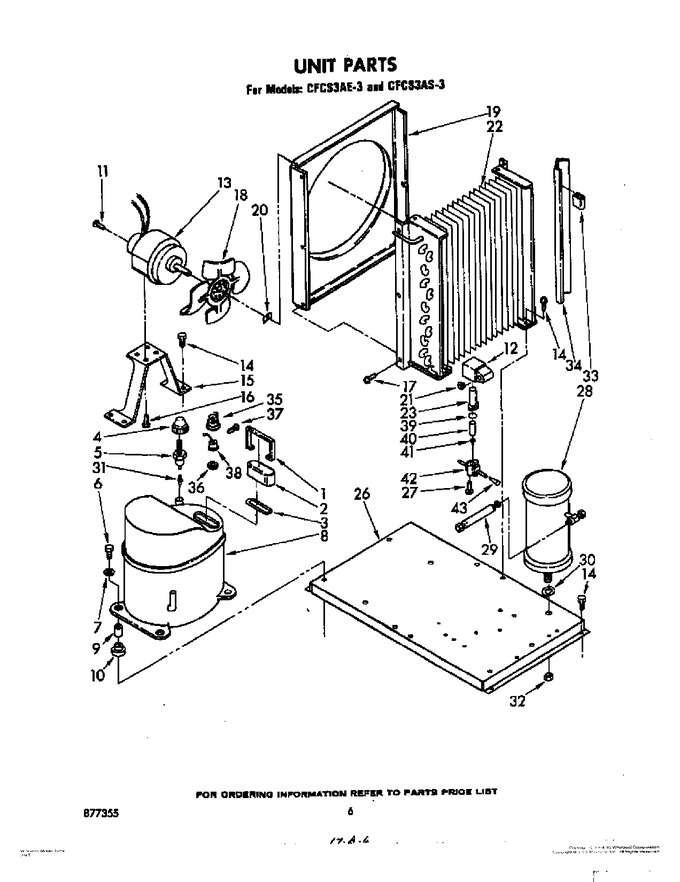

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	561858		Strap, Bale		Appelez-nous	-
2	751181		Cover, Terminal		Appelez-nous	-
3	561857		Gasket, Cover		Appelez-nous	-
4	561957		Cap, Valve		Appelez-nous	-
5	561958		Core, Valve		Appelez-nous	-
6	681342		Screw (4)		Appelez-nous	-
7	595230		Washer (4)		Appelez-nous	-
8	569285		Compressor, Service		Appelez-nous	-
9	583536		Sleeve, Grommet (4)		Appelez-nous	-
10	583625		Grommet (4)		Appelez-nous	-
11	680439		Screw, 8-36 X 1/2		Appelez-nous	-
12	702368		Coil, Solenoid		Appelez-nous	-
13	583647		Motor, Fan		Appelez-nous	-
14	681305		Screw, 1/4-20 X 1/2		Appelez-nous	-
15	756201		Bracket, Fan Motor		Appelez-nous	-
16	680439		Screw, 8-32 X 1/2 (furnished W/fan Motor)		Appelez-nous	-
17	WP90767		Screw, 8-32 X 3/8 (6)   (Replaces: 681167)			Immediately	$ 8.25
18	756898		Blade, Fan		Appelez-nous	-
19	755915		Shroud, Condenser		Appelez-nous	-
20	WP486692		Nut, Speed   (Replaces: 595380)				$ 8.43
21	596380		Bushing, Snap		Appelez-nous	-
22	755916		Condenser		Appelez-nous	-
23	DE81-04419A		Bonnet Assembly   (Replaces: 702381)				$ 540.74
26	755919		Base, Unit		Appelez-nous	-
27	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 595395)				$ 7.89
28	572803		Receiver Assembly		Appelez-nous	-
29	572801		Drier		Appelez-nous	-
30	681467		Washer, Lock		Appelez-nous	-
31	561955		Valve, Charging		Appelez-nous	-
32	595172		Nut (1)		Appelez-nous	-
33	681511		Clip		Appelez-nous	-
34	751609		Baffle, Condenser (r.s.)		Appelez-nous	-
34	756052		Baffle, Condenser (l.s.)		Appelez-nous	-
35	561702		Spring, Overload		Appelez-nous	-
36	561855		Adapter, Overload		Appelez-nous	-
37	595036		Screw, 6-32 X 1/4		Appelez-nous	-
38	598546		Overload		Appelez-nous	-
39	702382		Seal, Bonnet		Appelez-nous	-
40	702371		Plunger		Appelez-nous	-
41	702383		Diaphragm		Appelez-nous	-
42	702384		Body, Solenoid		Appelez-nous	-
43	702389		Strainer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
