SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Unit


05 - Door, Lit/optional


06 - Shelf

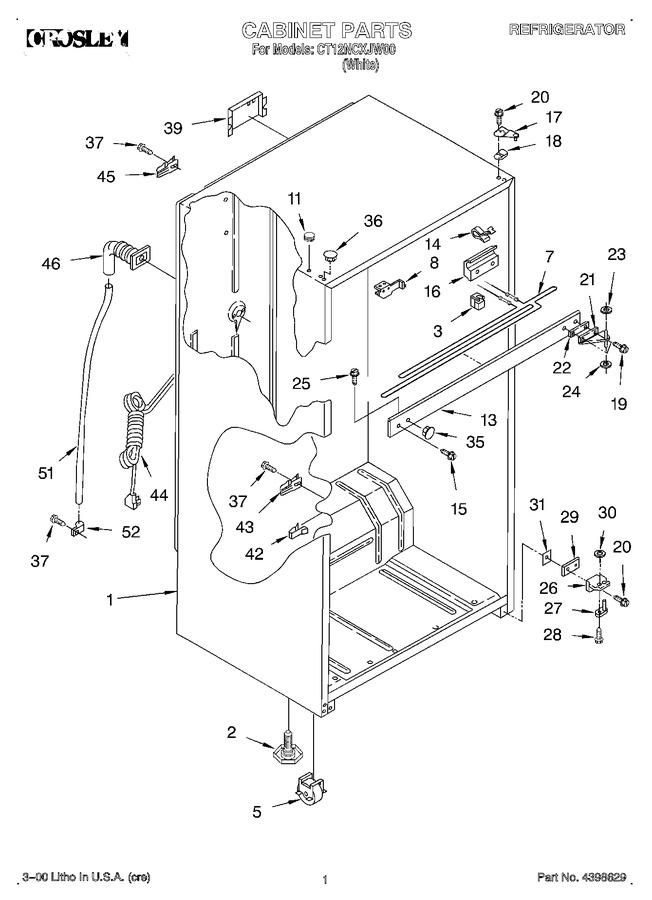

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W11117769		Leveler   (Replaces: 939005)			Immediately	$ 19.37
3	1116484		Spacer		Appelez-nous	-
5	2152014		Roller				$ 8.21
7	2178952		Heater, Mullion		Appelez-nous	-
8	2178822		Center Rail, Bracket		Appelez-nous	-
11	940014		Hole Plug				$ 18.33
13	2201938		Center Rail		Appelez-nous	-
14	1114428		Breaker, Trim Clip		Appelez-nous	-
15	WP488729		Screw   (Replaces: 488783)			Immediately	$ 8.28
16	2151428		Center, Rail Shim		Appelez-nous	-
17	1100513		Shim, Hinge Top		Appelez-nous	-
18	1100511		Shim, Hinge Top		Appelez-nous	-
19	WP999367		Screw   (Replaces: 489105)				$ 8.56
20	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
21	944788		Hinge, Center				$ 32.65
22	836155		Shim, Hinge Center		Appelez-nous	-
23	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
24	WP488296		Washer   (Replaces: 488296)			Immediately	$ 7.55
25	WP488729		Screw   (Replaces: 487900)			Immediately	$ 8.28
26	1123882		Hinge Butt, Bottom		Appelez-nous	-
27	654366		Pin, Hinge				$ 27.15
28	488714		Screw (bottom L.h.)				$ 5.48
29	935737		Shim, Bottom		Appelez-nous	-
30	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
31	935743		Tap Plate		Appelez-nous	-
35	1119707		Hole Plug		Appelez-nous	-
36	WP2151652		Hole Plug (2)   (Replaces: 2201012)				$ 22.87
37	WP489464		Screw   (Replaces: 3400824)			Immediately	$ 8.38
39	946218		Cover, Wiring		Appelez-nous	-
42	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
43	549193		Clamp-service Cord				$ 14.06
44	2202153		Cord, Service		Appelez-nous	-
45	937357		Clamp		Appelez-nous	-
46	2150543		Fitting, Drain		Appelez-nous	-
51	8316810		Tube, Drain   (Replaces: 509640)				$ 125.72
52	488946		Clamp				$ 21.47

    View Diagram in Separate Window       Print Part List
