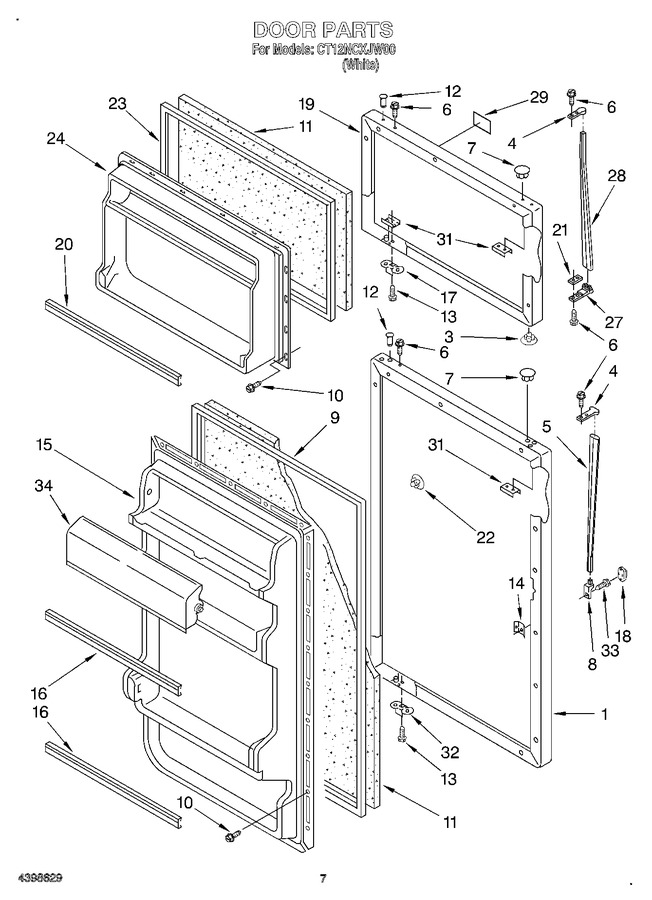

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2191132		Refrigerator Door Panel (also Order Item 11)		Appelez-nous	-
4	819342		End Cap, Handle   (Replaces: 2191877)			Immediately	$ 47.96
5	WP2162555		Handle, Center   (Replaces: 2148035)			Immediately	$ 150.11
6	WP8281206		Screw   (Replaces: 489028)				$ 7.94
7	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 7.80
8	819342		End Cap, Handle   (Replaces: 2183141)			Immediately	$ 47.96
9	2178664		Door Gasket, Magnetic		Appelez-nous	-
10	WP489464		Screw   (Replaces: 3400824)			Immediately	$ 7.83
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
13	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
14	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
15	2172477		Interior Door Panel (refrigerator)		Appelez-nous	-
16	2179104		Trim, Door Shelf		Appelez-nous	-
17	944035		Bracket, Door Stop		Appelez-nous	-
18	WP2202819W		Cover, Screw   (Replaces: 2202819W)			Immediately	$ 7.75
19	2191127		Freezer Door Panel (also Order Item 11)		Appelez-nous	-
20	2179105		Trim, Door Shelf		Appelez-nous	-
22	WP2189000		Hole Plug   (Replaces: 2189000)			Immediately	$ 7.40
23	2178665		Door Gasket, Magnetic		Appelez-nous	-
24	2172478		Interior Door Panel (freezer)		Appelez-nous	-
27	819342		End Cap, Handle   (Replaces: 2191876)			Immediately	$ 47.96
28	WP2162555		Handle, Center   (Replaces: 2148035)			Immediately	$ 150.11
29	2202039		Nameplate		Appelez-nous	-
31	2183198		Tap Plate		Appelez-nous	-
32	1115910		Bracket, Door Stop		Appelez-nous	-
33	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.79
34	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
34	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
34	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
34	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
34	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
34	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
34	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
34	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
34	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
34	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
34	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
34	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
34	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
34	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
34	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
34	833938		Kit, Terminal Connector				$ 8.07
34	2201641		Compartment Door		Appelez-nous	-
34	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
34	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
34	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
34	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
34	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
34	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
34	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
34	2148984		Door Reversal Instructions		Appelez-nous	-
34	350942		Primer White (13 Oz. Spray Can)				$ 89.66
	LIT2209923		Service & Wiring Sheet		Appelez-nous	-
	LIT2209920		Care & Use Guide		Appelez-nous	-
	LIT2209925		Energy Label		Appelez-nous	-
