SELECT A DIAGRAM
01 - Cabinet
02 - Liner
03 - Compartment Separator
04 - Unit
05 - Door, Lit/optional

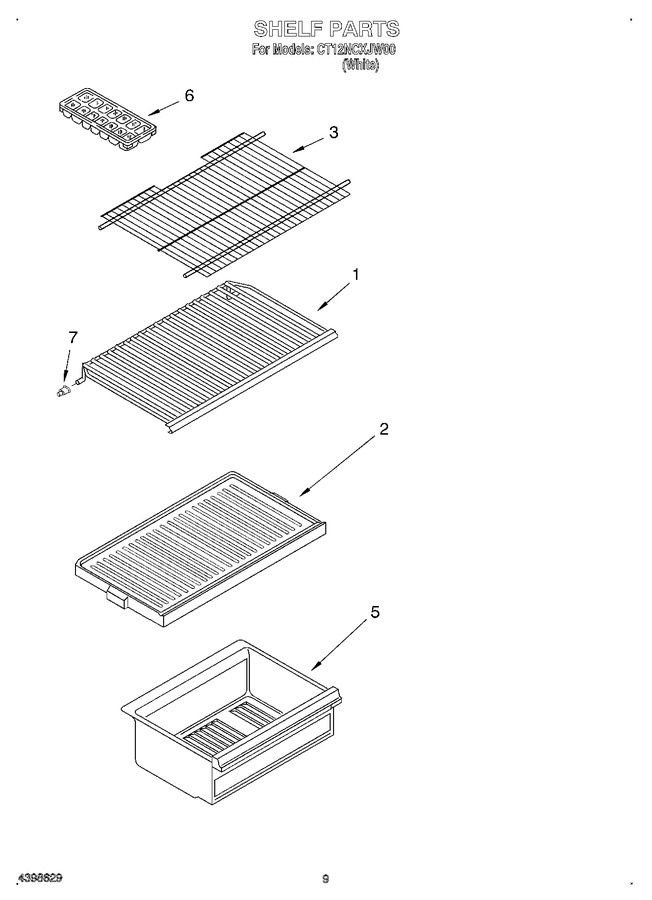

06 - Shelf
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2191600 | Shelf, Pullout (2) |
|
- | |||||
| 2 | 2201642 | Cover, Crisper |
|
- | |||||
| 3 | 2207612 | Shelf, Freezer |
|
- | |||||
| 5 | 2201344 | Pan, Crisper |
|
- | |||||
| 6 | WP841180A | Tray, Ice (2) (Replaces: 2201793) |
|
Immediately | $ 45.56 | ||||
| 7 | WPW10130299 | Cup, Mounting (Replaces: 2163762) |
|
Immediately | $ 14.00 |
