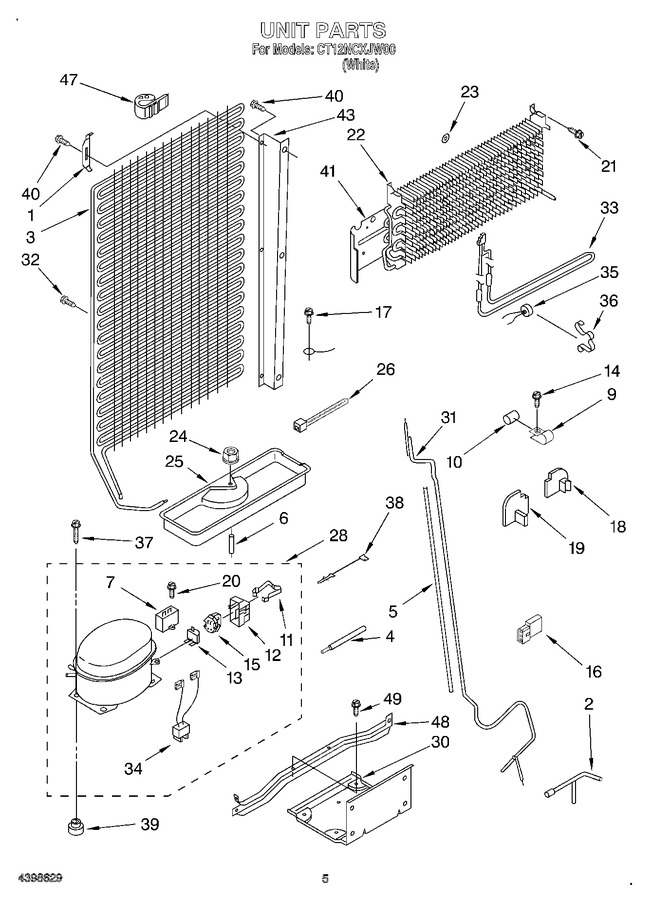

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2150664		Bracket		Appelez-nous	-
2	2178220		Tube Extension Assembly		Appelez-nous	-
3	2178217		Condenser Assembly		Appelez-nous	-
4	W11661102		Tube, Process   (Replaces: 2174739)				$ 29.01
5	1108537		Sleeve		Appelez-nous	-
6	938275		Spacer		Appelez-nous	-
7	2169137		Running Capacitor		Appelez-nous	-
9	510716		Tube Clamp		Appelez-nous	-
10	510769		Dampener		Appelez-nous	-
11	WPW10339879		Retainer   (Replaces: 2155774)				$ 7.90
12	WP2162358		Cover, Terminal (production)   (Replaces: 2162358)				$ 90.75
13	2176790		Overload   (Replaces: 2176860)				$ 124.17
14	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 21.16
15	WP2262181		Relay   (Replaces: 1108143)				$ 122.65
16	934326		Housing Plug		Appelez-nous	-
17	303776		Screw, Ground   (Replaces: 488879)		Appelez-nous	-
18	2150558		Side Block, Right Evaporator		Appelez-nous	-
19	2150946		Side Block, Left Evaporator		Appelez-nous	-
20	W11693756		Screw, 8 X 5/8a   (Replaces: 488687)			Immediately	$ 14.06
22	2178222		Evaporator		Appelez-nous	-
23	1108520		Retainer, Evaporator		Appelez-nous	-
24	285002		Nut   (Replaces: 489153)				$ 12.24
25	935781		Tray, Evaporator		Appelez-nous	-
26	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 7.90
28	482801		Tray Mounting Kit				$ 119.50
28	W10309988		Compressor (includes Items 7, 11, 12, 13, 15, 20, 34 & 39) (also Order   (Replaces: 2188334)			Immediately	$ 559.32
28	876765		Tube Kit			Immediately	$ 86.33
30	942860		Unit Mounting Plate		Appelez-nous	-
31	2172172		Exchanger, Heat		Appelez-nous	-
32	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.72
33	2151192		Heater, Defrost		Appelez-nous	-
34	WP2172890		Capacitor Wiring   (Replaces: 2172890)				$ 8.10
35	2151193		Bi-metal, Defrost		Appelez-nous	-
36	1110548		Clamp		Appelez-nous	-
37	876811		Screw   (Replaces: 489373)				$ 7.42
38	1101124		Overload Wiring (white)		Appelez-nous	-
38	1101125		Overload Wiring (red)		Appelez-nous	-
39	876811		Grommet   (Replaces: 1100826)				$ 7.42
40	2191594		Screw		Appelez-nous	-
41	2207681		Heat Shield, Evaporator		Appelez-nous	-
43	2150553		Channel, Condenser (right)		Appelez-nous	-
43	2150554		Channel, Condenser (left)		Appelez-nous	-
47	2150954		Bumper (2)		Appelez-nous	-
48	945449		Unit Mounting Rail		Appelez-nous	-
49	876764		Valve, Access(3/16``)			Immediately	$ 91.35
49	978028		Valve, Access (1/2)		Appelez-nous	-
49	978029		Valve Access (5/8``)				$ 93.85
49	978030		Valve, Access (3/4``)				$ 130.71
49	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
49	WP965173		Screw   (Replaces: 487248)			Immediately	$ 10.72
49	978026		Valve, Access (5/16``)			Immediately	$ 128.09
49	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
