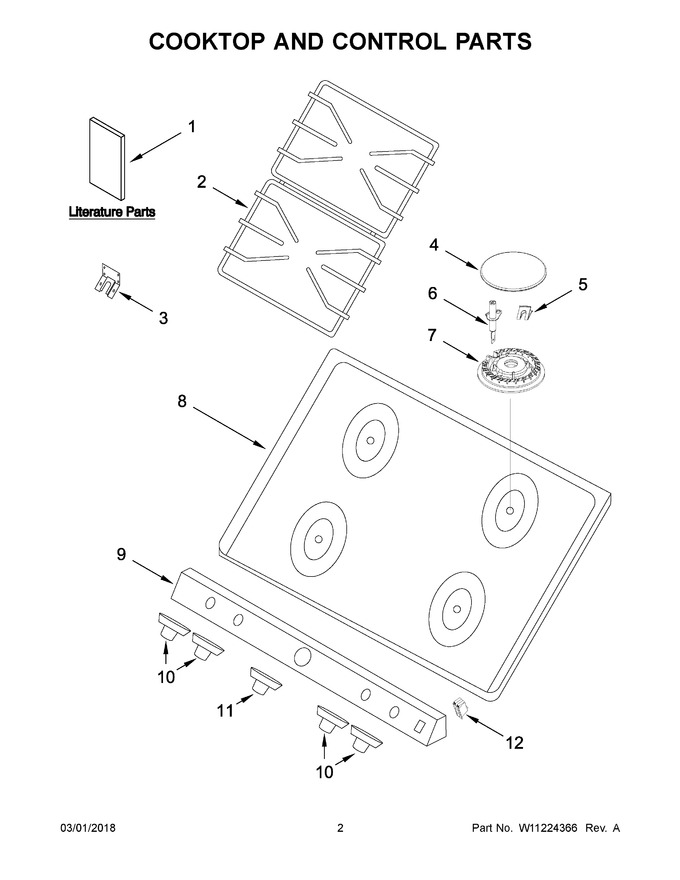

02 - Cooktop And Control Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Front Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11169655		Installation Instructions		Appelez-nous	-
2	W11225759		Grate, Burner   (Replaces: W11224713)				$ 339.47
3	W11223004		Bracket, Anti-tip			Immediately	$ 110.39
4	W11225776		Cap, Burner (left Front)   (Replaces: W11224772)				$ 141.45
5	W11225792		Clip, Electrode   (Replaces: W11225237)		Appelez-nous	-
6	W11225790		Electrode (left Front, Left Rear)   (Replaces: W11225235)				$ 66.74
7	W11225782		Spreader, Flame (left Front)   (Replaces: W11225227)		Appelez-nous	-
8	W11225758		Cooktop (black)   (Replaces: W11224681)				$ 409.16
9	W11224722		Panel, Manifold		Appelez-nous	-
10	W11225861		Knob, Burner   (Replaces: W11225292)		Appelez-nous	-
11	W11225832		Knob, Thermostat   (Replaces: W11225272)		Appelez-nous	-
12	W11224771		Switch, Oven Light		Appelez-nous	-
1A	W11169653		Use And Care Guide		Appelez-nous	-
4A	W11225780		Cap, Burner (right Front, Left Rear)   (Replaces: W11224775)				$ 158.62
4B	W11225779		Cap, Burner (right Rear)   (Replaces: W11224774)				$ 153.49
6A	W11225791		Electrode (right Front, Right Rear)   (Replaces: W11225236)				$ 66.36
7A	W11225785		Spreader, Flame (right Front, Left Rear)   (Replaces: W11225230)				$ 221.63
7B	W11225784		Spreader, Flame (right Rear)   (Replaces: W11225229)		Appelez-nous	-
