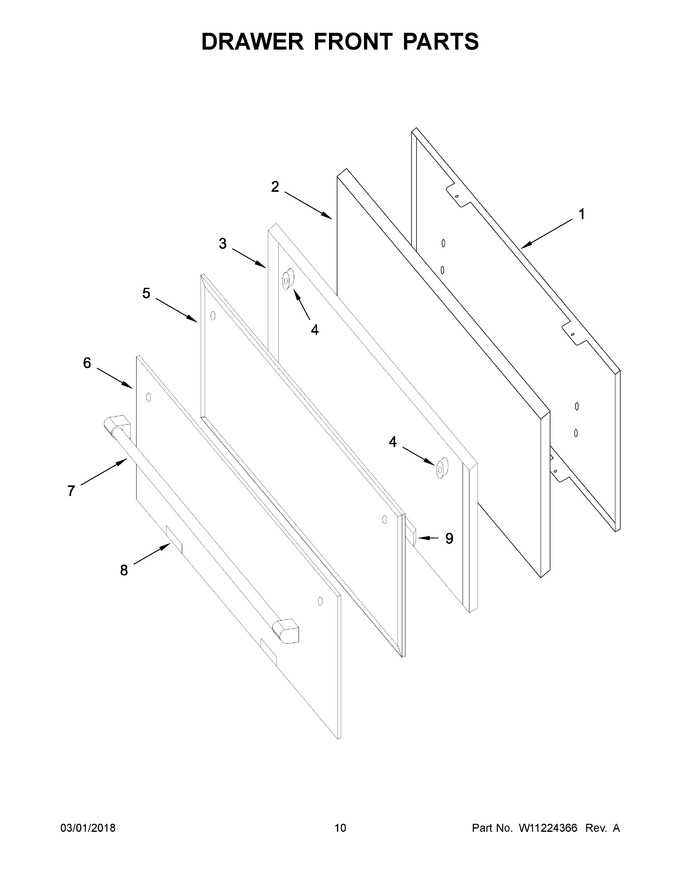

06 - Drawer Front Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11225133 | Lining, Broiler Door |
|
- | |||||
| 2 | W11688575 | Insulation, Broiler Door (Replaces: W11225134) |
|
- | |||||
| 3 | W11223473 | Panel, Inner Drawer |
|
- | |||||
| 4 | W11223466 | Spacer |
|
$ 16.88 | |||||
| 5 | W11223475 | Sub-panel, Drawer |
|
- | |||||
| 6 | W11223476 | Panel, Outer Drawer |
|
$ 185.71 | |||||
| 7 | W11224306 | Handle, Door (Replaces: W11223454) |
|
$ 370.41 | |||||
| 8 | W11223469 | Clip, Glass Retainer |
|
- | |||||
| 9 | W11223467 | Spacer, Flat |
|
$ 17.44 |
