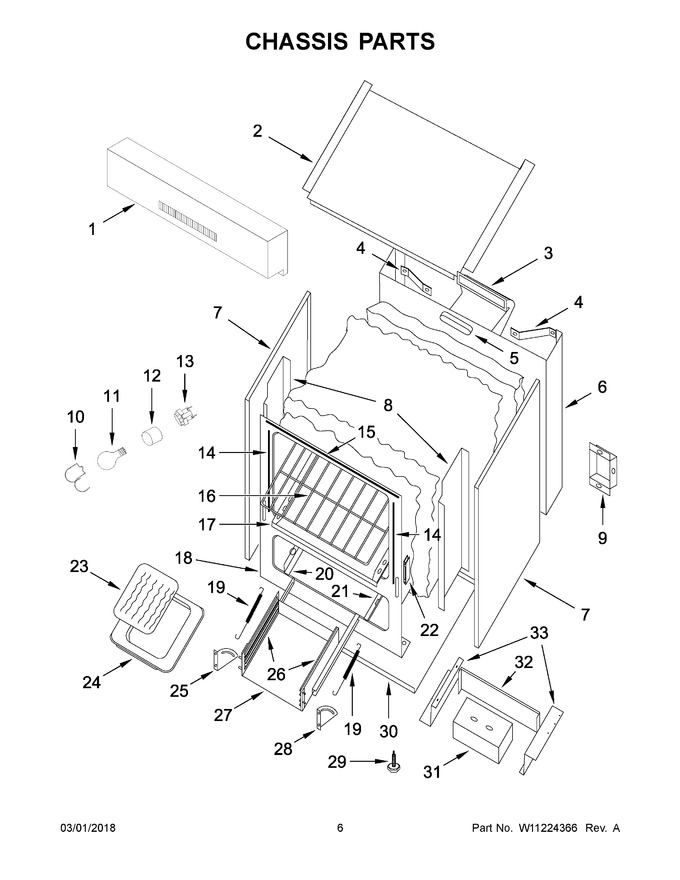

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11224747		Backguard, Vented			Immediately	$ 448.34
2	W11224715		Bottom, Burner Box		Appelez-nous	-
3	W11224717		Box, Flue		Appelez-nous	-
4	W11223015		Brace, Back		Appelez-nous	-
5	W11628759		Gasket, Flue   (Replaces: W11224719)		Appelez-nous	-
6	W11224721		Back, Main		Appelez-nous	-
7	W11222958		Panel, Side (black)				$ 363.55
8	W11222969		Baffle, Inner Side		Appelez-nous	-
9	W11224765		Box, Power		Appelez-nous	-
10	W11223426		Guard, Oven Light		Appelez-nous	-
11	8009		Bulb, Light   (Replaces: 4364092)			Immediately	$ 17.51
12	W11223424		Socket, Bulb		Appelez-nous	-
13	4364091		Receptacle, Light		Appelez-nous	-
14	W11223961		Gasket, Oven Side   (Replaces: W11222989)				$ 178.11
15	W11222984		Gasket, Oven Top			Immediately	$ 178.79
16	W11222957		Rack, Oven		Appelez-nous	-
17	W11225761		Bottom, Oven   (Replaces: W11224724)				$ 209.59
18	W11222993		Frame, Front			Immediately	$ 356.57
19	W11224738		Spring, Door		Appelez-nous	-
20	W11224731		Slide, Drawer (left)		Appelez-nous	-
21	W11224733		Slide, Drawer (right)				$ 90.10
22	W11223957		Receiver, Hinge   (Replaces: W11222949)				$ 70.33
23	W11224742		Grill, Broiler		Appelez-nous	-
24	W11224743		Pan, Broiler		Appelez-nous	-
25	W11224740		Hinge, Broiler (left)				$ 94.65
26	W11224736		Glide, Drawer		Appelez-nous	-
27	W11224737		Drawer, Broiler				$ 263.79
28	W11224741		Hinge, Broiler (right)				$ 94.65
29	W11673271		Leg, Leveler   (Replaces: 4364080)				$ 28.46
30	W11222953		Bottom, Main				$ 200.57
31	W11223037		Counterweight		Appelez-nous	-
32	W11222996		Cross Brace, Rear		Appelez-nous	-
33	W11222995		Support, Rear Side				$ 75.93
NI	W11224756		Relief, Strain		Appelez-nous	-
NI	W11223958		Insulation, Back Or Bottom   (Replaces: W11222962)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11224769		Bushing, Wire		Appelez-nous	-
NI	W11225771		Cord, Power   (Replaces: W11224750)				$ 317.25
NI	W11688809		Insulation, Wrap   (Replaces: W11222964)		Appelez-nous	-
