01 - Cover Sheet


02 - Cooktop And Control Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Front Parts

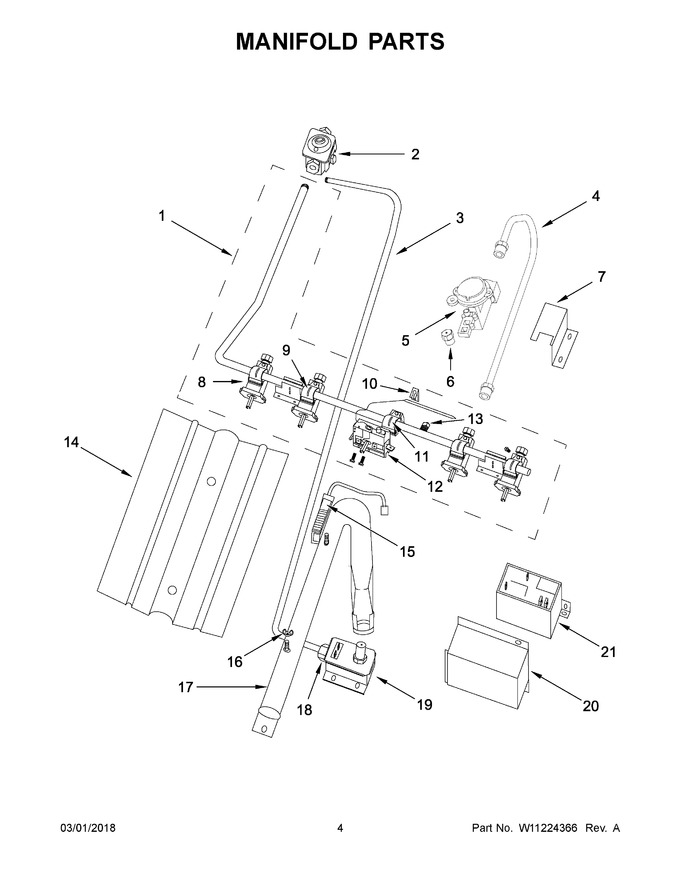

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11234821		Assembly, Manifold				$ 800.17
2	W11225835		Regulator   (Replaces: W11225282)				$ 322.47
3	W11225283		Tubing, Oven Supply		Appelez-nous	-
4	W11236836		Tubing, Burner (front)		Appelez-nous	-
5	W11225231		Holder, Orifice (left Front)		Appelez-nous	-
6	W11225817		Orifice (natural) (left Front)   (Replaces: W11225238)		Appelez-nous	-
7	W11225862		Bracket, Burner   (Replaces: W11225294)		Appelez-nous	-
8	W11225836		Valve, Burner   (Replaces: W11225284)				$ 269.42
9	W11225856		Clamp, Valve   (Replaces: W11225285)				$ 74.39
10	W11223836		Clip, Thermostat Bulb				$ 10.55
11	W11224672		Clamp, Thermostat		Appelez-nous	-
12	W11225755		Thermostat, Oven   (Replaces: W11224670)				$ 394.73
13	W11225830		Plug, Manifold   (Replaces: W11225259)		Appelez-nous	-
14	W11225277		Baffle, Burner				$ 214.84
15	W11225831		Igniter, Oven   (Replaces: W11225261)			Immediately	$ 226.85
16	WP488130		Hex Nut, 10-24   (Replaces: 4364069)				$ 6.59
17	W11225834		Burner, Oven   (Replaces: W11225276)		Appelez-nous	-
18	W11225833		Fitting, Oven Valve   (Replaces: W11225273)		Appelez-nous	-
19	W11225860		Valve, Gas   (Replaces: W11225289)				$ 228.74
20	W11225287		Cover, Module Box		Appelez-nous	-
21	W11225857		Module, Spark   (Replaces: W11225286)				$ 366.98
4A	W11236838		Tubing, Burner (rear)		Appelez-nous	-
5A	W11225234		Holder, Orifice (left Rear)				$ 243.85
5B	W11235861		Holder, Orifice (right Front)		Appelez-nous	-
5C	W11225232		Holder, Orifice (right Rear)		Appelez-nous	-
6A	W11225825		Orifice (natural) (left Rear)   (Replaces: W11225245)		Appelez-nous	-
6B	W11225821		Orifice (natural) (right Front)   (Replaces: W11225239)		Appelez-nous	-
6C	W11225829		Orifice (natural) (right Rear)   (Replaces: W11225256)		Appelez-nous	-
NI	W11297268		Kit, Liquid Propane Conversion (see Installation Instructions)   (Replaces: W11190770)				$ 168.99
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11225858		Harness, Switch   (Replaces: W11225288)				$ 219.87
NI	W11297269		Kit, Natural Gas Conversion (see Installation Instructions)   (Replaces: W11190771)				$ 168.99
