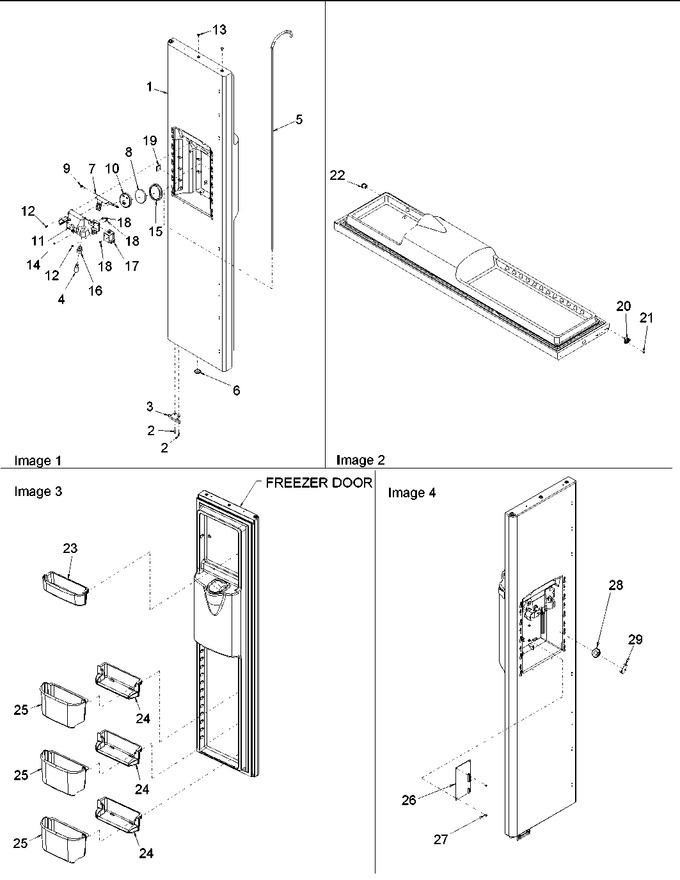

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12584901WQ		Assy, Fz Dr Foam (wht)		Appelez-nous	-
2	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
3	12636401W		Stop, Door (wht)		Appelez-nous	-
4	W10857122		Light Bulb   (Replaces: M0360001)				$ 14.52
5	67004938		Assy, Waterline   (Replaces: 12615503)				$ 139.23
6	A3080001		Plug, Button (blk)		Appelez-nous	-
7	12563201		Hinge, Ice Chute		Appelez-nous	-
8	12563401		Insul, Chute Doorxx		Appelez-nous	-
9	WP12565502		Spring, Chute Dr   (Replaces: 12565502)				$ 8.43
10	12562701		Door, Ice Chute				$ 5.84
11	12662901		Extension,ice Chute		Appelez-nous	-
12	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 7.30
13	M0311605		Plug, Button (wht)		Appelez-nous	-
14	67002816		Clip, Waterline   (Replaces: 12678201)				$ 19.15
15	12665101		Seal, Ice Chute				$ 5.84
16	12617501		Socket, Light		Appelez-nous	-
17	12575401		Solenoid		Appelez-nous	-
18	WP488234		Screw, Mach   (Replaces: M0200314)				$ 7.08
19	M0104102		Clip, Cord				$ 8.10
20	12571301W		Closure, Door (wht)		Appelez-nous	-
21	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.96
22	12395501W		Bushing, Door (wht)		Appelez-nous	-
23	12556901		Bucket, Upr Fz Dr		Appelez-nous	-
24	12569401		Frame, Tilt Bucket		Appelez-nous	-
25	12569302		Bucket, Fz Tilt Xxx		Appelez-nous	-
26	12550301		Board, H.v. Power		Appelez-nous	-
27	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
28	12584401		Speaker, Facade		Appelez-nous	-
29	12619601		Cap, Speaker		Appelez-nous	-
