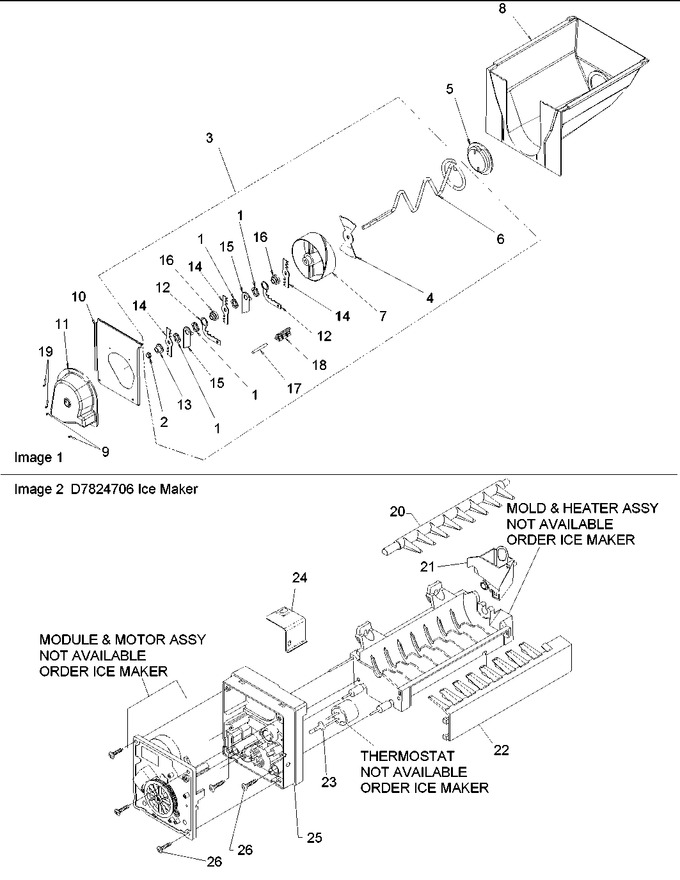

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10275101 | Washer, Waved |
|
- | |||||
| 2 | WPM0223101 | Nut, Locking (Replaces: M0223101) |
|
$ 8.06 | |||||
| 3 | WP12740302 | Crushed Ice Agitator Assy (Replaces: R0156803) |
|
$ 529.58 | |||||
| 4 | 10113801 | Bar, Crsh Ice Bucket |
|
$ 4.96 | |||||
| 5 | WPD7749401 | Cap, Helix End (Replaces: D7749401) |
|
$ 29.01 | |||||
| 6 | 10114401 | Agitator, Ice |
|
$ 107.74 | |||||
| 7 | 10114703 | Wheel, Crsh Ice |
|
- | |||||
| 8 | WP67005959 | Bucket, Ice Crush (Replaces: 12517801) |
|
$ 251.54 | |||||
| 9 | 67006425 | Screw, Sm (Replaces: M0238642) |
|
Immediately | $ 7.30 | ||||
| 10 | 10115001 | Front, Ice Crusher |
|
$ 25.55 | |||||
| 11 | 10114004 | Cover, Blade |
|
- | |||||
| 12 | 10114601 | Blade, Static |
|
- | |||||
| 13 | 10113901 | Spacer, Cover |
|
- | |||||
| 14 | 10114501 | Blade, Rotating |
|
- | |||||
| 15 | 10275201 | Damper, Ice |
|
- | |||||
| 16 | 10114301 | Washer Stepped |
|
- | |||||
| 17 | M1200108 | Pin, Roll |
|
- | |||||
| 18 | 10114101 | Anchor, Blade |
|
- | |||||
| 19 | M0231704 | Screw, Tf |
|
- | |||||
| 20 | WP627843 | Ejector, Ice (Replaces: 95101-1) |
|
$ 87.78 | |||||
| 21 | WP628356 | Inlet, Water (Replaces: 95100-1) |
|
$ 53.75 | |||||
| 22 | WP2182124 | Stripper, Ice (Replaces: 95102-1) |
|
$ 90.35 | |||||
| 23 | WP2315522 | Retainer, Thermostat (Replaces: 95104-1) |
|
$ 11.60 | |||||
| 24 | WP2256087 | Bracket, Module & Heater (Replaces: 95107-1) |
|
$ 97.65 | |||||
| 25 | WP2195914 | Support, Module Housing (Replaces: 95103-1) |
|
$ 109.80 | |||||
| 26 | WP681249 | Screw (Replaces: 95106-1) |
|
Immediately | $ 8.25 | ||||
| NI | WP489128 | Screw, Bracket (Replaces: 95108-1) |
|
$ 11.40 | |||||
| NI | 8003RP | Ice Maker Hook Up Kit (Replaces: R0131235) |
|
Immediately | $ 43.29 |
