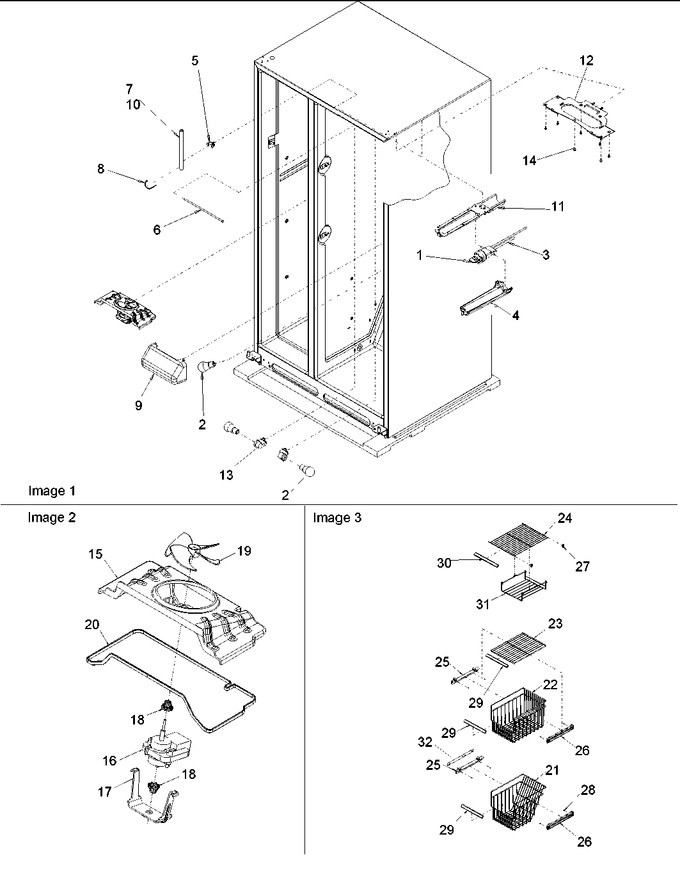

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11395888 | Plug, Bypass (Replaces: 12664501) |
|
Immediately | $ 50.72 | ||||
| 2 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 3 | 12590601 | Housing, Water Filter Assy |
|
- | |||||
| 4 | WP12568001 | Cover, Filter (Replaces: 12568001) |
|
Immediately | $ 86.76 | ||||
| 5 | M0322202 | Tie Wire |
|
- | |||||
| 6 | 12617601 | Tube, Plastic |
|
- | |||||
| 7 | 12607601Q | Insulation,tubing |
|
- | |||||
| 8 | M0321210 | Tie, Elec |
|
- | |||||
| 9 | 12567001 | Cover, Crisper Light |
|
- | |||||
| 10 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 11 | 12688501 | Plate, Filter Backing |
|
- | |||||
| 12 | 12666201 | Plate, Light Backing |
|
- | |||||
| 13 | 12679501 | Socket, Light |
|
- | |||||
| 14 | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 14.72 | ||||
| 15 | 12590001 | Shroud, Evap |
|
- | |||||
| 16 | WPW10128551 | Motor, Evap Fan (Replaces: 10449508) |
|
Immediately | $ 78.75 | ||||
| 17 | 12217805 | Clip, Evap Motor |
|
- | |||||
| 18 | WP67002780 | Grommet, Fan Motor (Replaces: 12619301) |
|
$ 8.20 | |||||
| 19 | WP2169142 | Fan, Evaporator (Replaces: 12217201) |
|
Immediately | $ 43.41 | ||||
| 20 | A3030302 | Gasket |
|
- | |||||
| 21 | 12570301 | Basket, Lwr Fz |
|
- | |||||
| 22 | 12570401 | Basket, Upr Fz |
|
- | |||||
| 23 | 12570501 | Shelf, Lwr Fz |
|
- | |||||
| 24 | 12570601 | Shelf, Upr Fz |
|
- | |||||
| 25 | 12015102 | Rail, Shelf (lt) |
|
- | |||||
| 26 | 10972802 | Rail, Shelf (rt) |
|
- | |||||
| 27 | C8973801 | Support, Frz Shelf |
|
$ 8.35 | |||||
| 28 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 29 | 12314101 | Trim, Basket/shelf |
|
- | |||||
| 30 | 12314102 | Trim, Basket/shelf |
|
- | |||||
| 31 | 12585601 | Shelf, Hanging Wire |
|
- | |||||
| 32 | 12683601 | Spacer, Fz Shelf |
|
- |
