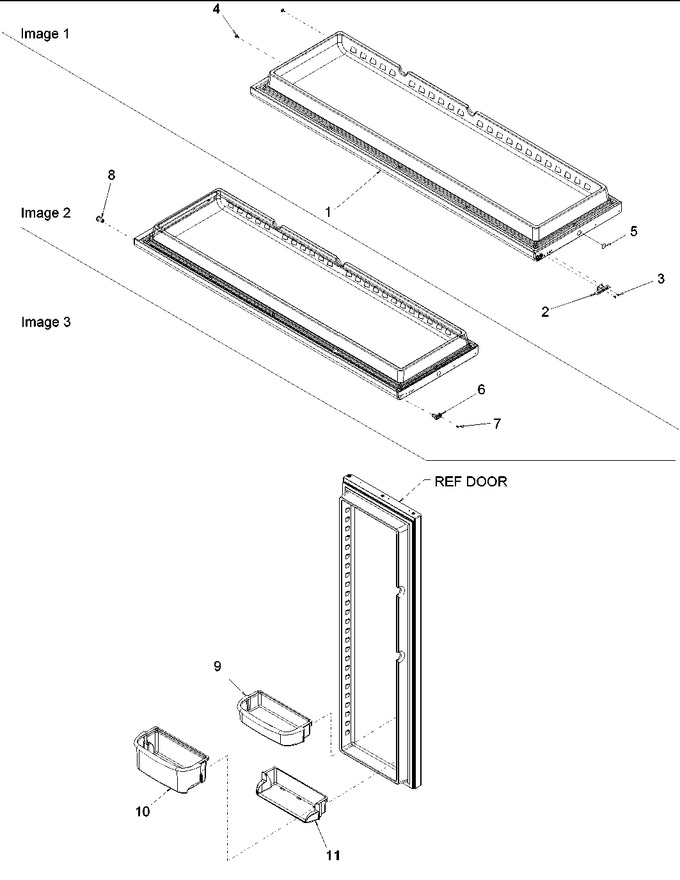

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12584701WQ		Ref Dr Foam Assy (wht)		Appelez-nous	-
2	12636401W		Stop, Door (wht)		Appelez-nous	-
3	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
4	M0311605		Plug, Button (wht)		Appelez-nous	-
5	A3080001		Plug, Button (blk)		Appelez-nous	-
6	R0181181		Closure, Door (wht)   (Replaces: 12113202)			Immediately	$ 7.55
7	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.96
8	10961001		Bushing, Door (wht)		Appelez-nous	-
9	12556401		Bucket, Gallon		Appelez-nous	-
10	12568601		Bucket, Gallon Tilt		Appelez-nous	-
11	12568801		Frame, Tilt Bucket		Appelez-nous	-
