Blower & Motor Assembly

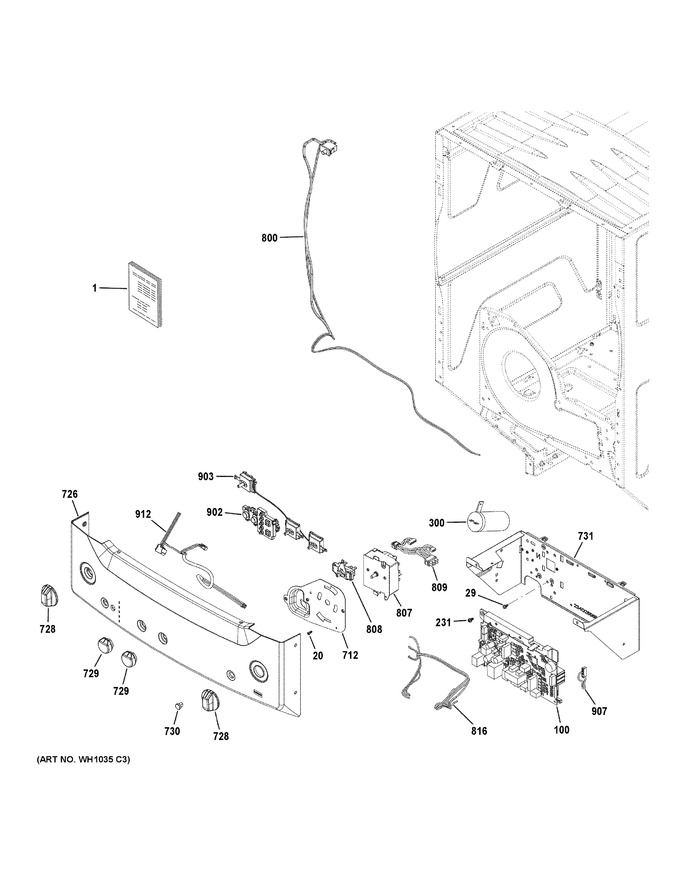

Controls & Backsplash
Drum
Dryer Cabinet
Dryer Front Panel & Door
Motor & Drive Assembly
Tub & Basket Assembly
Washer Cabinet & Lid
Water System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-16781 | Pub Number Pm Installation Instruction |
|
- | |||||
| 1 | 49-90581 | Pub Number Manual Use & Care |
|
- | |||||
| 1 | 31-16930 | Pub Number Pm Mini Manual |
|
- | |||||
| 20 | WE2M302 | Screw |
|
- | |||||
| 29 | WB01K10042 | Scr 8-18 Ab Ihw 3/8 Sn |
|
- | |||||
| 100 | WW01F01893 | Board & Support Assembly (Replaces: WH16X27251) |
|
Immediately | $ 192.54 | ||||
| 231 | WE01X25535 | Screw |
|
- | |||||
| 300 | WH12X27299 | Capacitor |
|
- | |||||
| 712 | WE19M1696 | Support Controls |
|
- | |||||
| 726 | WE20X28560 | Panel Control And Ht Assembly 27" Crosle |
|
- | |||||
| 728 | WE04X23115 | Knob Control Asm |
|
- | |||||
| 729 | WE04X23116 | Knob Rotatory Asm |
|
- | |||||
| 730 | WE04X27654 | Button Start Asm |
|
- | |||||
| 731 | WE04X27287 | Enclosure Board 27" |
|
- | |||||
| 800 | WE15X27252 | Harness Main Dryer Nv Elec 27" |
|
- | |||||
| 807 | WW02F01034 | Timer (Replaces: WE04X22654) |
|
Immediately | $ 70.60 | ||||
| 808 | WW02L00024 | Switch Pts (Replaces: WE4M416) |
|
Immediately | $ 15.28 | ||||
| 809 | WE15X27237 | Harness Ui Assembly Elec |
|
- | |||||
| 816 | WH19X27249 | Harness Fuse 27" Elec |
|
- | |||||
| 902 | WE04X27284 | Ui Board Ge Asm |
|
$ 156.58 | |||||
| 903 | WH18X27241 | Selector Asm (3s) |
|
- | |||||
| 907 | WE15X27302 | Harness Jumper Software 27" |
|
- | |||||
| 912 | WE15X27258 | Harness Comunication Rj45 |
|
- |
