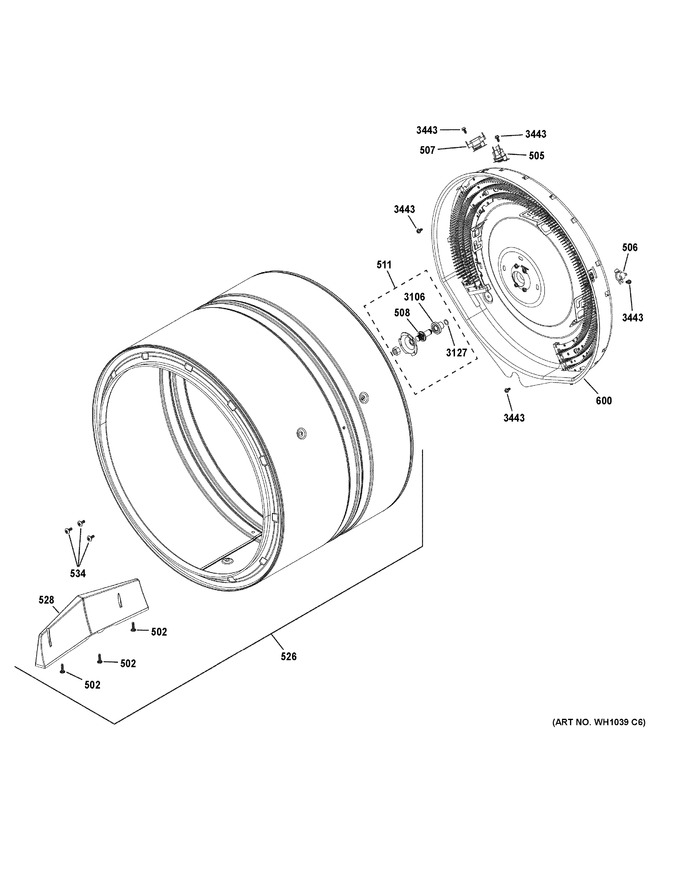

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 502 | WW02A00031 | Screw # 10 (Replaces: WE2M174) |
|
Immediately | $ 3.97 | ||||
| 505 | WG04F03775 | Thermostat Bias Ctr Inlt (Replaces: WE4M181) |
|
Immediately | $ 25.33 | ||||
| 506 | WG04F02270 | Thermostat Hi-limit (Replaces: WE4M137) |
|
Immediately | $ 14.19 | ||||
| 507 | WE4M528 | Safety Left T'stat 24" E |
|
- | |||||
| 508 | WE0X181L | Shaft |
|
- | |||||
| 511 | WW02A00019 | Shaft & Bracket Ass'y (Replaces: WE3M33) |
|
Immediately | $ 38.10 | ||||
| 526 | WW01F01170 | Drum Asm 27" (Replaces: WE21M41) |
|
$ 157.34 | |||||
| 528 | WE21M39 | Baffle |
|
- | |||||
| 534 | WW01A00456 | Screw #10 (Replaces: WE2M163) |
|
Immediately | $ 3.97 | ||||
| 600 | WR01F02479 | Heater And Housing Asm (Replaces: WE11M62) |
|
Immediately | $ 206.86 | ||||
| 3106 | WE1M462 | Sleeve Drum |
|
$ 38.53 | |||||
| 3127 | WG04F00001 | O Ring (Replaces: WE1M461) |
|
$ 28.98 | |||||
| 3443 | WW01A00097 | Scr 8-18 Ab Ihw 7/16 Sn (Replaces: WH2X1217) |
|
$ 3.97 |
