Blower & Motor Assembly


Controls & Backsplash


Drum


Dryer Cabinet


Dryer Front Panel & Door


Motor & Drive Assembly


Tub & Basket Assembly


Washer Cabinet & Lid


Water System

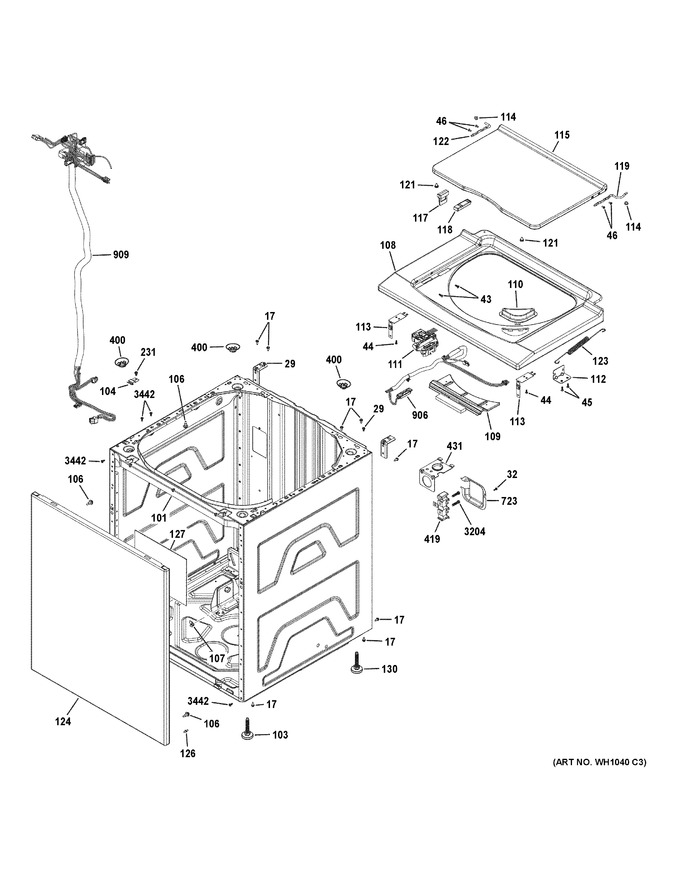

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	WW01A00097		Screw   (Replaces: WH2X1217)				$ 3.97
29	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
32	WH01X10593		Scr 12-14 B		Appelez-nous	-
43	WW01A00449		Scr 8-16 B Flp .525 S Zn   (Replaces: WH01X10631)			Immediately	$ 4.37
44	WE2M282		Scr 6-18 B B1q1 3/4 S Zn		Appelez-nous	-
45	WW01A00449		Scr 8-16 B Flp .525 S Zn   (Replaces: WH01X10631)			Immediately	$ 4.37
46	WH2X1211		Screw		Appelez-nous	-
101	WH16X10143		Brace Front Upper		Appelez-nous	-
103	WW03L00038		Leg Leveling   (Replaces: WH01X10594)			Immediately	$ 11.25
104	WW03A00013		Clip Locking   (Replaces: WH01X10595)			Immediately	$ 4.37
106	WW03A00028		Pin Alignment   (Replaces: WH01X10596)				$ 3.97
107	WH01X10597		Clip Ground		Appelez-nous	-
108	WH49X27331		Top Cover 27 - Wire Ties		Appelez-nous	-
109	WH16X10156		Bracket Cover		Appelez-nous	-
110	WH01X10621		Funnel Bleach		Appelez-nous	-
111	WW03F00016		Lock Lid   (Replaces: WH44X10288)			Immediately	$ 73.47
112	WH16X10153		Bracket Spring		Appelez-nous	-
113	WH01X10623		Clip Cover		Appelez-nous	-
114	WH01X10625		Bushing Hinge		Appelez-nous	-
115	WW03L00048		Lid Washer   (Replaces: WH44X10284)			Immediately	$ 66.43
117	WW03F00001		Actuator Lid   (Replaces: WH43X10057)			Immediately	$ 5.36
118	WW03F00604		Magnet   (Replaces: WH01X10626)			Immediately	$ 11.71
119	WH44X10289		Hinge Washer Cover Rh		Appelez-nous	-
121	WH01X10627		Bumper Lid		Appelez-nous	-
122	WW03L00007		Hinge Washer Cover Lh   (Replaces: WH44X10290)				$ 7.94
123	WW03A00033		Spring Cover   (Replaces: WH01X10628)				$ 10.12
124	WW01L01352		Panel Front Asm   (Replaces: WH42X10886)				$ 111.11
126	WH02X10347		Stud Grounding		Appelez-nous	-
127	WH01X10630		Damper Pad		Appelez-nous	-
130	WE01X25234		Leg Rear Leveling		Appelez-nous	-
231	WE01X25535		Screw		Appelez-nous	-
400	WH01X27305		Seat Ball Joint		Appelez-nous	-
419	WE4M525		Term Blk & Grnd Strap		Appelez-nous	-
431	WE01X20423		Strain Relief Bracket Electric		Appelez-nous	-
723	WE1M1009		Cover Fuse Terminal		Appelez-nous	-
906	WH19X27244		Harness Lid Lock		Appelez-nous	-
909	WH19X27242		Harness Main Washer Jst 27		Appelez-nous	-
3204	WH2M270		Scr		Appelez-nous	-
3442	WE2M281		Scr 8-18 Ab 1/2		Appelez-nous	-
