Blower & Motor Assembly


Controls & Backsplash


Drum


Dryer Cabinet


Dryer Front Panel & Door


Motor & Drive Assembly


Tub & Basket Assembly


Washer Cabinet & Lid


Water System

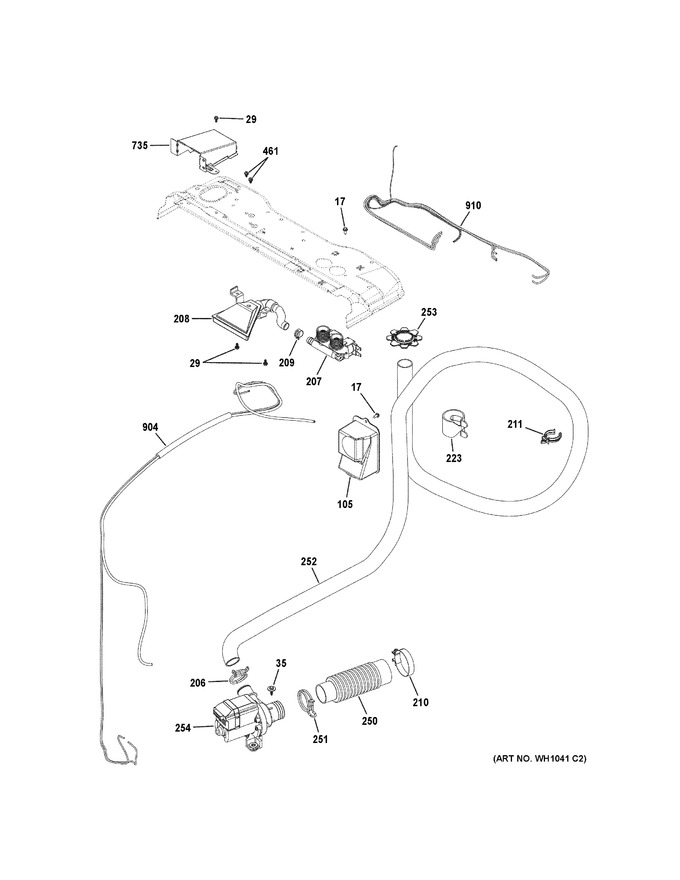

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	WW01A00097		Screw   (Replaces: WH2X1217)				$ 3.97
29	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
35	WH01X10600		Scr 8-18 B Hxw 3/8 S Zn		Appelez-nous	-
105	WH44X10280		Cover Hose		Appelez-nous	-
206	WH01X10599		Clamp		Appelez-nous	-
207	WH13X27314		Valve 2-1				$ 109.88
208	WH13X27418		Water Inlet Assembly		Appelez-nous	-
209	WH01X10649		Clamp		Appelez-nous	-
210	WH01X10603		Clamp Tub Outlet		Appelez-nous	-
211	WH01X10604		Clip Draining Hose		Appelez-nous	-
223	WH16X10152		Press Hose Clamp		Appelez-nous	-
250	WW03F00053		Hose Drain Inlet   (Replaces: WH41X10280)			Immediately	$ 19.54
251	WH01X10598		Clamp		Appelez-nous	-
252	WW03F00542		Hose Drain Asm   (Replaces: WH41X10281)			Immediately	$ 59.28
253	WH41X10282		Stop - Drain Hose		Appelez-nous	-
254	WW02L00622		Pump Drain   (Replaces: WH23X10040)			Immediately	$ 91.78
461	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
735	WE03X27255		Cover Harness Main		Appelez-nous	-
904	WH19X27246		Harness Pump And Hose Pressure		Appelez-nous	-
910	WH19X27245		Harness Valve & Thermistor		Appelez-nous	-
