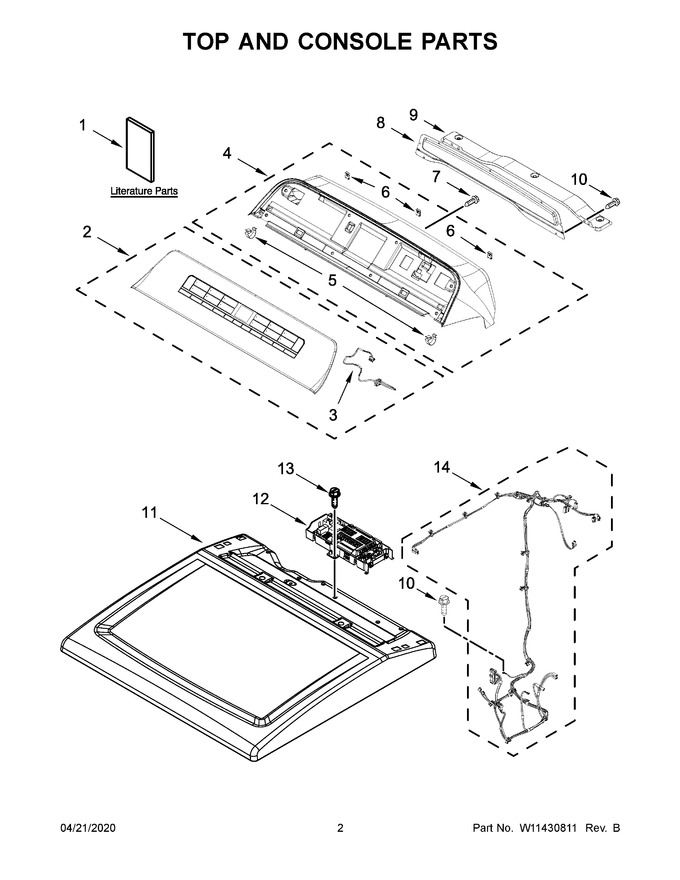

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11268643		Installation Instructions		Appelez-nous	-
2	W11419060		Assembly, Console Fascia (complete)   (Replaces: W11164035)		Appelez-nous	-
3	W11164312		Harness, User Interface (hmi)				$ 167.98
4	W11401367		Console (white)   (Replaces: W11178534)		Appelez-nous	-
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
7	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
8	W10622402		Panel, Rear Console		Appelez-nous	-
9	W10651902		Bulkhead Bracket, Rear Panel		Appelez-nous	-
10	W11568617		Screw   (Replaces: W10567155)				$ 14.72
11	W11227373		Top (white)   (Replaces: W10508981)				$ 255.61
12	W11526010		Control, Electronic (acu)   (Replaces: W11424519)		Appelez-nous	-
13	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
14	W11164228		Harness, Main		Appelez-nous	-
11A	W11051477		Top (chrome Shadow)   (Replaces: W10681117)				$ 358.85
1A	W11175222		Tech Sheet		Appelez-nous	-
1B	W11175247		Quick Start Guide		Appelez-nous	-
4A	W11401368		Console (chrome Shadow)   (Replaces: W11178535)		Appelez-nous	-
