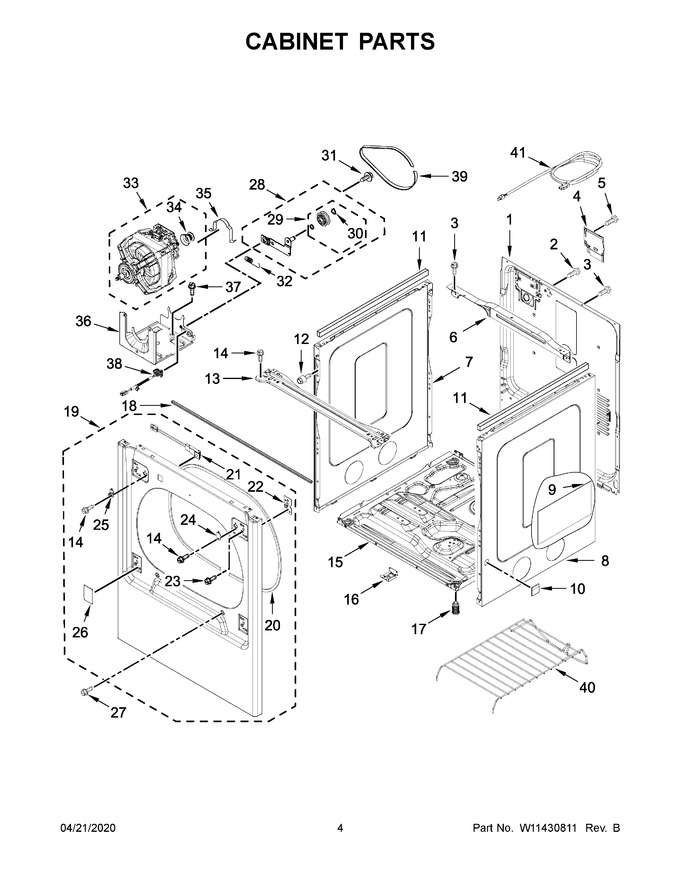

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10824896 | Panel, Rear |
|
$ 311.31 | |||||
| 2 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 3 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 4 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 6 | W10622391 | Bracket, Rear Panel Upper |
|
- | |||||
| 7 | W10633648 | Panel, Side (white (without Cutout)) |
|
$ 287.57 | |||||
| 8 | W10645768 | Panel, Side (gas) (white (with Cutout)) |
|
- | |||||
| 9 | W11690850 | Panel, Dampening (Replaces: W11313127) |
|
$ 27.17 | |||||
| 10 | W10811916 | Plug, Sight Hole (white) (Replaces: 8564457) |
|
$ 16.50 | |||||
| 11 | W10316616 | Seal, Foam |
|
$ 27.79 | |||||
| 12 | W10636208 | Screw |
|
- | |||||
| 13 | W10722502 | Brace, Cab And Seal Assembly |
|
- | |||||
| 14 | W10891954 | Screw (Replaces: 8281212) |
|
- | |||||
| 15 | W10613683 | Base, Cabinet |
|
$ 201.57 | |||||
| 16 | W10632347 | Spacer Bracket, Lower |
|
- | |||||
| 17 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 18 | W11406199 | Seal, Foam (Replaces: W11261179) |
|
$ 65.25 | |||||
| 19 | W10875869 | Panel, Front (white) (Replaces: W10861063) |
|
$ 320.59 | |||||
| 20 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 21 | W11036551 | Switch, Door (Replaces: W10459026) |
|
Immediately | $ 74.25 | ||||
| 22 | W10596959 | Bracket, Hinge |
|
$ 20.00 | |||||
| 23 | 6-920119 | Screw |
|
- | |||||
| 24 | WPW10111888 | Plug, Strike (Replaces: W10111888) |
|
$ 29.69 | |||||
| 25 | W11163826 | Strike (Replaces: W10778071) |
|
$ 26.61 | |||||
| 26 | W10590953 | Plug, Hinge (white) |
|
- | |||||
| 27 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 28 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 35.78 | ||||
| 29 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 32.51 | ||||
| 30 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 31 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 32 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 33 | W11105178 | Assembly, Motor (Replaces: W10806759) |
|
Immediately | $ 335.25 | ||||
| 34 | W11568637 | Pulley, Motor (Replaces: W10669447) |
|
$ 86.58 | |||||
| 35 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 36 | W10578053 | Bracket, Motor Mounting |
|
$ 92.22 | |||||
| 37 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 38 | W11662087 | Switch, Broken Belt (Replaces: W10774832) |
|
$ 54.97 | |||||
| 39 | W10849499 | Belt, Drive (Replaces: W10610882) |
|
Immediately | $ 57.86 | ||||
| 40 | W10693998 | Dry Rack |
|
- | |||||
| 41 | W11628810 | Cord, Power (Replaces: W10869142) |
|
$ 101.90 | |||||
| 10A | W11406198 | Plug, Sight Hole (chrome Shadow) (Replaces: W11305280) |
|
$ 23.34 | |||||
| 19A | W10875891 | Panel, Front (chrome Shadow) (Replaces: W10861062) |
|
$ 356.12 | |||||
| 26A | W10596965 | Plug, Hinge (chrome Shadow) |
|
- | |||||
| 7A | W10681830 | Panel, Side (chrome Shadow (without Cutout)) |
|
$ 350.56 | |||||
| 8A | W10681831 | Panel, Side (gas) (chrome Shadow (with Cutout)) |
|
- |
