SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts

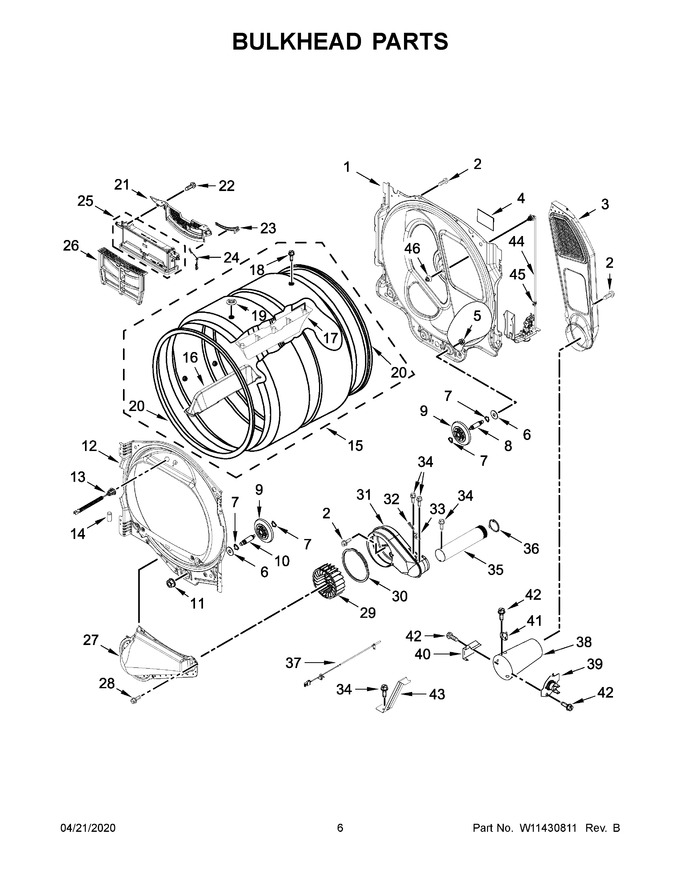

04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11135006		Bulkhead, Rear   (Replaces: W10623519)				$ 267.47
2	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
3	W11129538		Duct, Inlet Assembly   (Replaces: W10834203)				$ 203.06
4	W11409002		Pad, Foam   (Replaces: W10504381)				$ 23.76
5	WPW10080190		Nut, Hex (left Hand Thread)   (Replaces: W10001120)			Immediately	$ 10.01
6	W11236646		Washer   (Replaces: 3387459)			Immediately	$ 14.73
7	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
8	WPW10359272		Shaft, Drum Roller - Left Hand Thread   (Replaces: W10359272)			Immediately	$ 58.48
9	WPW10314173		Roller, Support   (Replaces: W10314171)			Immediately	$ 28.50
10	WPW10359271		Shaft, Drum Roller - Right Hand Thread   (Replaces: W10359271)			Immediately	$ 62.21
11	W11812294		Nut, Hex   (Replaces: 3934666)				$ 12.77
12	W10861007		Bulkhead, Front				$ 221.78
13	WPW10629046		Assembly, Drum Light   (Replaces: W10629046)				$ 82.97
14	W10491983		Cap   (Replaces: 359702)		Appelez-nous	-
15	W10646770		Assembly, Drum			Immediately	$ 256.80
16	W10767074		Baffle, Drum High				$ 37.79
17	W10767090		Baffle, Drum Low				$ 39.12
18	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
19	W10665050		Cap, Plug   (Replaces: W10128544)				$ 20.15
20	W11189144		Seal, Drum   (Replaces: W10664120)				$ 22.69
21	W11242876		Housing, Outlet.   (Replaces: W10608806)				$ 110.26
22	WP3387230		Screw   (Replaces: 3387230)			Immediately	$ 8.54
23	W11165163		Sensor, Electrode   (Replaces: W10608814)				$ 99.31
24	W11161899		Sensor Jumper, Moisture   (Replaces: W10657328)				$ 15.89
25	W10608813		Grille, Outlet				$ 230.15
26	W10859086		Lint Screen (grey)   (Replaces: W10608811)				$ 71.64
27	W10868982		Lint Duct Assembly				$ 196.38
28	WP489463		Screw   (Replaces: 489463)				$ 8.25
29	WP697772		Wheel, Blower   (Replaces: 697772)			Immediately	$ 59.07
30	W10868675		Seal, Lint Duct				$ 78.46
31	W11246350		Housing, Blower   (Replaces: W10667717)			Immediately	$ 98.52
32	W10909685		Fuse, Thermal (91c)   (Replaces: W10693363)			Immediately	$ 71.42
33	WP8577274		Thermistor   (Replaces: 8577274)			Immediately	$ 43.61
34	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
35	W10608817		Pipe, Exhaust				$ 77.08
36	WPW10344699		Collar, Duct   (Replaces: W10344699)				$ 85.70
37	W11744013		Thermistor, Gas Inlet   (Replaces: W10651569)		Appelez-nous	-
38	WP8573824		Funnel, Burner   (Replaces: 8573824)				$ 185.29
39	WP8573713		Cut-off, Thermal   (Replaces: 8573713)			Immediately	$ 72.51
40	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
41	WP3391912		Thermostat, Hi Limit   (Replaces: 3391912)			Immediately	$ 71.56
42	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
43	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
44	W11314437		Valve Hose Assy.   (Replaces: W11136346)			Immediately	$ 226.16
45	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
46	W11230609		Nozzle, Cap   (Replaces: W11100488)			Immediately	$ 8.24
NI	W10623830		Accessory Parts, Kit, Dryer - Premium Steam Hose (includes (1) 2' Hose And (1) 5' Hose, (1) Y Adapter And (5) Rubber Was			Immediately	$ 40.41
NI	W10782875		Accessory Parts, Dryer - Steam System Inlet Hose, 5 Ft (cold Water)				$ 27.03
NI	W10044609A		Accessory Parts, Kit, Dryer - Steam Hose (includes (1) 3' Hose, (1) 5' Hose, (1) Y Adapter And (4) Rubber Washers.)			Immediately	$ 22.46
NI	W10443301A		Accessory Parts, Kit, Dryer - Steam Hose (includes (1) 2' Hose, (1) 5' Hose, (1) Y Adapter, (2) Export (british) Adapter		Appelez-nous	-
