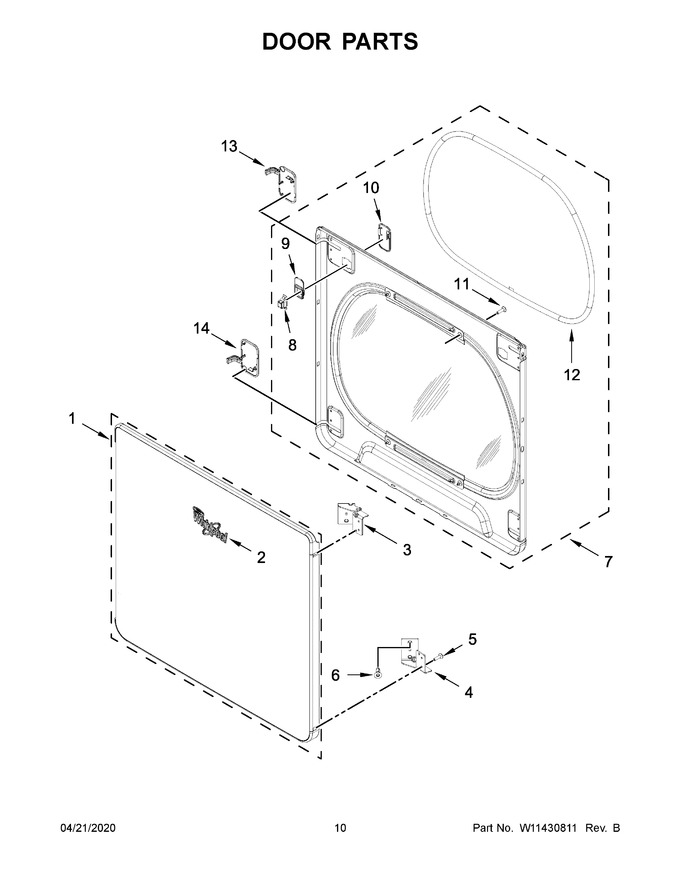

06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11317949 | Assembly, Outer Door |
|
- | |||||
| 2 | W11178521 | Badge, Whirlpool (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 3 | W10850024 | Door, Hinge (upper) (Replaces: W10783754) |
|
$ 85.53 | |||||
| 4 | W10850044 | Door, Hinge (lower) (Replaces: W10783755) |
|
$ 85.42 | |||||
| 5 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 7.55 | ||||
| 6 | W10704731 | Screw |
|
- | |||||
| 7 | W11133036 | Assembly, Inner Door (white) (Replaces: W10915194) |
|
$ 261.68 | |||||
| 8 | W11429587 | Assembly, Door Catch (Replaces: W10610880) |
|
Immediately | $ 26.55 | ||||
| 9 | W11103932 | Bezel, Door Catch (white) (Replaces: W10631401) |
|
$ 28.29 | |||||
| 10 | W10631410 | Cover, Door Catch (white) |
|
- | |||||
| 11 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 12 | W10763835 | Seal, Door |
|
Immediately | $ 129.79 | ||||
| 13 | W10631395 | Hinge Cover, Top (white) |
|
- | |||||
| 14 | W10631396 | Hinge Cover, Bottom (white) |
|
- | |||||
| 10A | W10669024 | Cover, Door Catch (chrome Shadow) |
|
$ 25.65 | |||||
| 13A | W10631412 | Hinge Cover, Top (chrome Shadow) |
|
$ 25.76 | |||||
| 14A | W10631413 | Hinge Cover, Bottom (chrome Shadow) |
|
- | |||||
| 7A | W11162064 | Assembly, Inner Door (chrome Shadow) (Replaces: W10915195) |
|
$ 305.47 | |||||
| 9A | W10669023 | Bezel, Door Catch (chrome Shadow) |
|
$ 23.64 |
