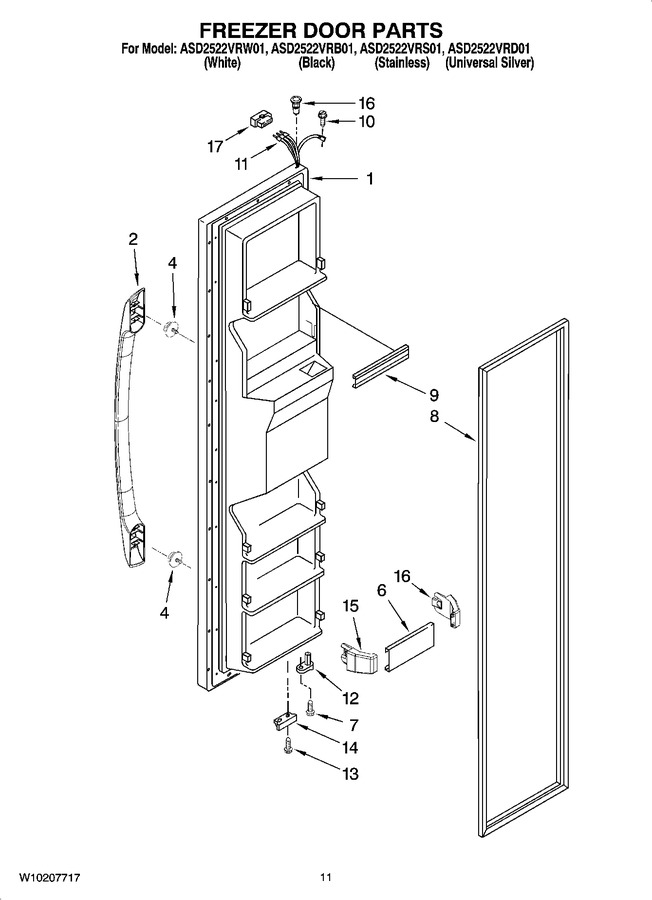

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10169600		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10171251		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	W10173666		Freezer Door (includes Item 8 And Dispenser Front Parts) (universal Silver)		Appelez-nous	-
1	W10169599		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10179171		Handle, Lh (white)				$ 77.64
2	W10179169		Handle, Lh (black)				$ 72.25
4	WPW10288153		Screw, Mounting   (Replaces: 2326016)			Immediately	$ 9.65
6	2313199		Trim, Door (4)   (Replaces: 2313199K)				$ 90.93
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	2159074		Door Gasket, Magnetic (repair) (mist Beige)   (Replaces: 2221303)				$ 325.70
8	2159082		Door Gasket, Magnetic (repair) (black)   (Replaces: 2221314)				$ 332.49
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 24.27
10	WP489128		Screw   (Replaces: 488500)				$ 11.40
11	2311641		Wire Harness   (Replaces: 2206601)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
15	2195917		End Cap (8)		Appelez-nous	-
16	WP2182181		Thimble-top   (Replaces: 2182181)				$ 8.15
17	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
