SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts

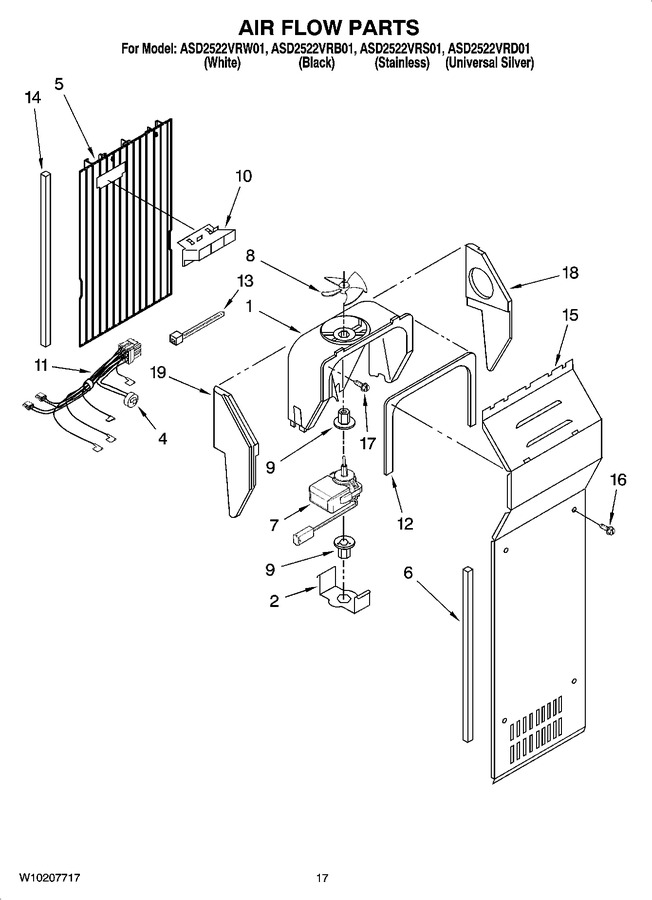

10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Fan Scroll   (Replaces: 2182120)			Immediately	$ 111.97
2	2155590		Retainer, Fan Motor				$ 5.83
4	WPW10225581		Bi-metal, Defrost   (Replaces: 2321799)			Immediately	$ 50.77
5	2203593		Air Duct Freezer		Appelez-nous	-
6	WP2304241		Gasket   (Replaces: 2304241)			Immediately	$ 82.80
7	4389144		Fan Motor   (Replaces: W10131845)			Immediately	$ 78.61
8	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 43.41
9	WP2176759		Fan Grommet (2)   (Replaces: 2176759)				$ 7.77
10	2182146		Duct, Icemaker				$ 88.84
11	W11234406		Harness, Fan Evaporator (includes 4)   (Replaces: W10129821)				$ 95.49
12	WP2155789		Gasket Cover   (Replaces: 2155789)				$ 7.79
13	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.90
14	4388500		Gasket   (Replaces: 2203876)				$ 90.39
15	2203841		Cover, Evaporator		Appelez-nous	-
16	4389654		Screw   (Replaces: 8281159)				$ 13.89
17	WP489478		Screw   (Replaces: 489478)				$ 7.75
18	4388358		Support, R.s   (Replaces: 2203595)				$ 31.16
19	4388358		Support, L.s.   (Replaces: 2203596)				$ 31.16

    View Diagram in Separate Window       Print Part List
