SELECT A DIAGRAM

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Refrigerator Liner Parts
02 - Refrigerator Liner Parts

Diagram for 03 - Refrigerator Shelf Parts
03 - Refrigerator Shelf Parts

Diagram for 04 - Freezer Liner Parts
04 - Freezer Liner Parts

Diagram for 05 - Motor And Ice Container Parts
05 - Motor And Ice Container Parts

Diagram for 06 - Refrigerator Door Parts
06 - Refrigerator Door Parts

Diagram for 07 - Freezer Door Parts
07 - Freezer Door Parts

Diagram for 08 - Dispenser Front Parts
08 - Dispenser Front Parts

Diagram for 09 - Unit Parts
09 - Unit Parts

Diagram for 10 - Air Flow Parts
10 - Air Flow Parts

Diagram for 11 - Control Parts
11 - Control Parts

Diagram for 12 - Icemaker Parts, Optional Parts (not Included)
12 - Icemaker Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

3 WP2194719 Retainer, Levers   (Replaces: 2194719) In-Stock Immediately $ 11.77

4 WPW10224328 Spring, Torsion   (Replaces: 2304772) Special Order $ 83.24

5 WP2196195 Pin   (Replaces: 2196195) Special Order $ 14.58

6 WP2180353 Door, Ice   (Replaces: 2180353) In-Stock Immediately $ 24.69

7 2304355 Door Mechanism Assembly Appelez-nous -
8 2205686 Mechanism Delay Appelez-nous -
9 WP2206670B Grille, Overflow (black)   (Replaces: 2206670B) In-Stock Immediately $ 35.52

9 WP2206670W Grille, Overflow (white)   (Replaces: 2206670W) Special Order $ 68.80

10 8201537 Water Fitting Assembly (includes Water Tube)   (Replaces: 2304317) Special Order $ 134.13

11 2195089B Lever, Ice Dispenser (black) Appelez-nous -
11 2195089W Lever, Ice Dispenser (white) Appelez-nous -
12 WP2180224 Guide, Ice   (Replaces: 2180224) In-Stock Immediately $ 27.63

13 2180200 Lamp Holder Special Order $ 98.66

14 WP2162361 Switch (4)   (Replaces: 2162361) In-Stock Immediately $ 27.34

15 WP2180226 Bracket, Control   (Replaces: 2183771) In-Stock Immediately $ 24.39

16 WP22002263 Bulb, Light   (Replaces: 3406124) In-Stock Immediately $ 13.66

17 WPW10152859 Lever, Water Dispenser (black)   (Replaces: 2195090B) In-Stock Immediately $ 97.92

17 WPW10152858 Lever, Water Dispenser (white)   (Replaces: 2195090W) Special Order $ 104.60

22 WP3400906 Screw   (Replaces: 489000) Special Order $ 7.84

23 W10153728 Front Cover Assembly (includes Items 18, 19, 20 & 21) (white)   (Replaces: W10169591) Appelez-nous -
23 W10153746 Front Cover Assembly (includes Items 18, 19, 20 & 21) (black)   (Replaces: W10169593) Special Order $ 213.95

24 625834 Spacer, Switch (2) Special Order $ 7.99

25 WP2195051 Strain Relief   (Replaces: 2195051) Special Order $ 11.67

26 WP2304673 Bracket, Dispenser   (Replaces: 2304673) Special Order $ 15.60


    View Diagram in Separate Window     Print Icon   Print Part List

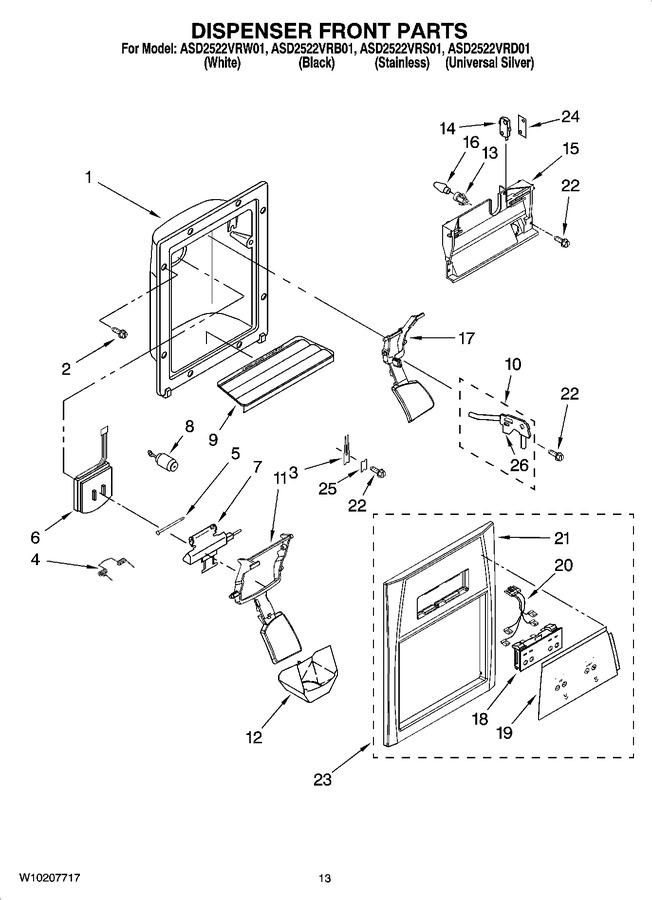

Diagram for ASD2522VRW01
