01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)

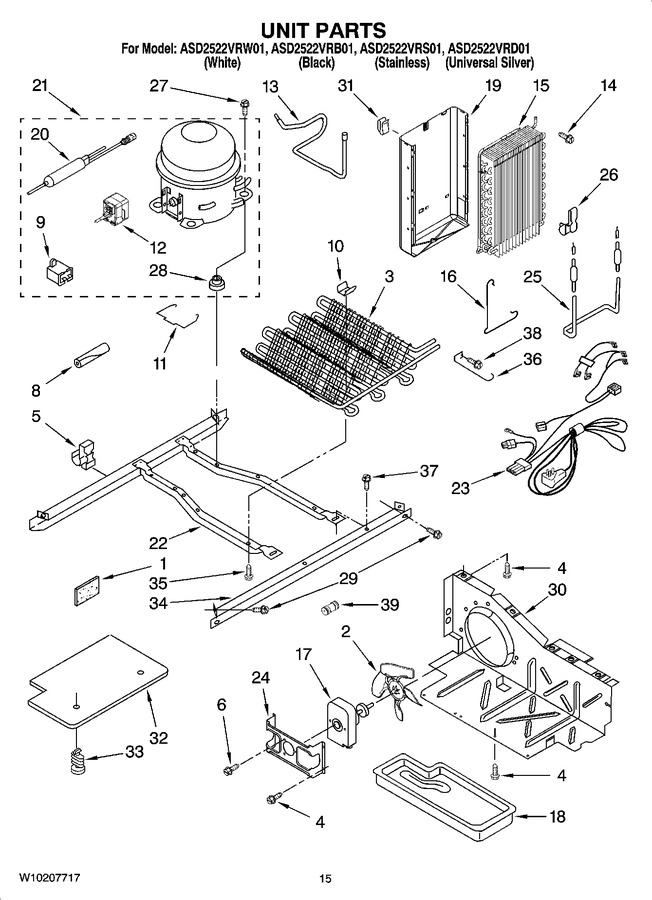

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11553819		Insulation-sound   (Replaces: 2169104)			Immediately	$ 14.07
2	W11458267		Fan, Blade   (Replaces: 2225834)			Immediately	$ 23.99
3	2324712		Condenser Assembly (also Order 7)   (Replaces: W10121484)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	2208280		Clip, Wire		Appelez-nous	-
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
9	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
10	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
11	2223313		Strap, Bale		Appelez-nous	-
12	WP2304885		Start-device, Combination (start Relay And Overload)   (Replaces: 2320153)				$ 179.47
13	2205765		Tube, Suction				$ 36.04
14	WP489478		Screw   (Replaces: 489478)				$ 7.75
15	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
16	2161324		Clamp		Appelez-nous	-
17	W10124096		Fan, Motor   (Replaces: W10130108)			Immediately	$ 112.20
18	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
19	2217194		Heat Shield (includes 26)		Appelez-nous	-
20	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
20	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 30.78
21	W10139460		Compressor (includes Items 9, 12, 20 & 28) (also Order 876765 Tube Kit)   (Replaces: W10120460)				$ 491.28
22	2304904		Unit Mounting Frame		Appelez-nous	-
23	2187510		Unit, Harness		Appelez-nous	-
24	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
25	WP2323198		Heater, Defrost   (Replaces: 2323198)			Immediately	$ 90.70
26	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
27	876811		Screw (4)   (Replaces: 489373)				$ 7.42
28	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
29	489340		Screw		Appelez-nous	-
30	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
31	2155547		Clip, Heat Shield		Appelez-nous	-
32	2304899		Unit Cover, Bottom		Appelez-nous	-
33	489396		Clip				$ 10.72
34	2305374		Unit Mounting Rail				$ 80.64
35	W11544659		Screw   (Replaces: 8281232)				$ 13.67
36	2260517		Guard, Fan		Appelez-nous	-
37	WP489427		Screw   (Replaces: 489427)				$ 7.47
38	WPW10141625		Screw   (Replaces: 488649)				$ 21.16
39	WPW10334458		Connector, Water Tube   (Replaces: 2320322)				$ 21.59
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
