SELECT A DIAGRAM

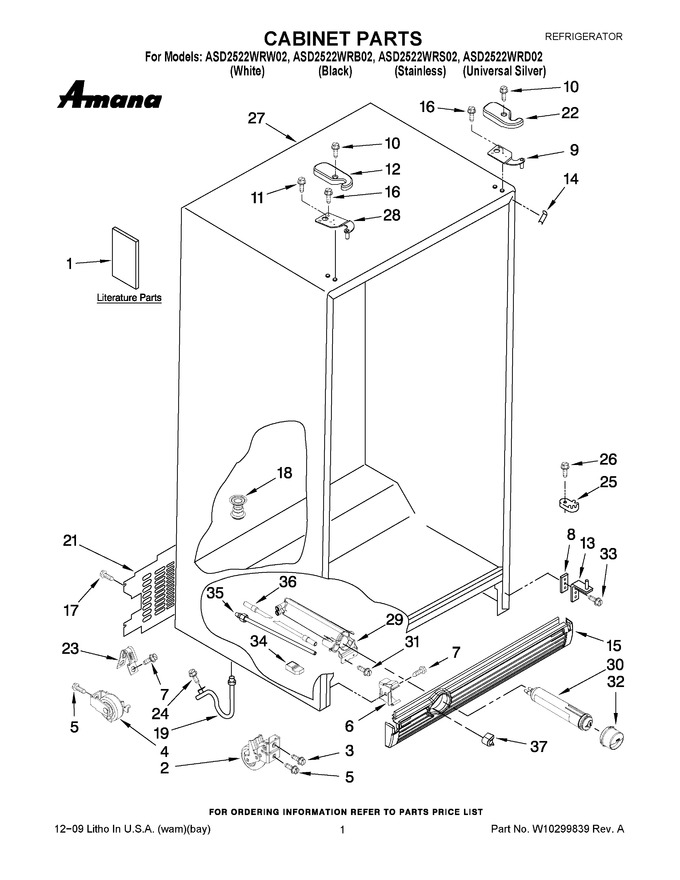

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10237701		Use & Care Guide		Appelez-nous	-
1	W10154390		Instruction Sheet (door Removal)		Appelez-nous	-
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10234042		Energy Guide		Appelez-nous	-
1	W10275776		Service & Wiring Sheet		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: W10250570)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489478		Screw   (Replaces: 489478)				$ 7.75
8	2209697		Shim (2)				$ 41.25
9	WP2203771		Hinge Top, Rc   (Replaces: 2203771)				$ 98.22
10	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
11	WP489128		Screw   (Replaces: 8281149)				$ 10.88
12	WP2203407W		Hinge Cover, Fc (white)   (Replaces: 2203407W)				$ 20.75
12	WP2203407B		Hinge Cover, Fc (black)   (Replaces: 2203407B)				$ 19.52
13	8201707		Hinge Bottom (2)   (Replaces: 2217075)				$ 88.90
14	W11252732		Filler Wapper (black)   (Replaces: 2201017)				$ 12.45
14	WPW10283959		Filler Wapper (white)   (Replaces: 2201014)				$ 7.82
15	WPW10311033		Grille (black)   (Replaces: 2260500B)				$ 176.10
15	WPW10311032		Grille (white)   (Replaces: 2260500W)				$ 161.58
16	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
17	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
18	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
19	W11512417		Extension Tube   (Replaces: W10153550)				$ 34.79
21	WP2188755		Cover, Unit   (Replaces: 2188735)				$ 135.91
22	WP2203408B		Hinge Cover, Rc (black)   (Replaces: 2203408B)				$ 18.63
22	WP2203408W		Hinge Cover, Rc (white)   (Replaces: 2203408W)				$ 20.97
23	549193		Clamp, Service Cord				$ 13.39
24	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
25	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
26	WP489483		Screw   (Replaces: 489483)				$ 10.87
27	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
28	WP2203770		Hinge, Top Fc   (Replaces: 2203770)				$ 95.52
29	WPW10121138		Housing, Water Filter   (Replaces: W10121138)			Immediately	$ 112.91
30	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
31	WP489500		Screw   (Replaces: 489500)				$ 7.78
32	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
32	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 31.90
33	WP489497		Screw (4)   (Replaces: 3400113)			Immediately	$ 29.09
34	2260519		Block, Housing Support		Appelez-nous	-
35	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 115.54
36	W10274362		Tube, Filter Inlet		Appelez-nous	-
37	WP2260503B		Button, Filter (black)   (Replaces: 2260503B)				$ 72.78
37	2260503W		Button, Filter (white)			Immediately	$ 34.16

    View Diagram in Separate Window       Print Part List
