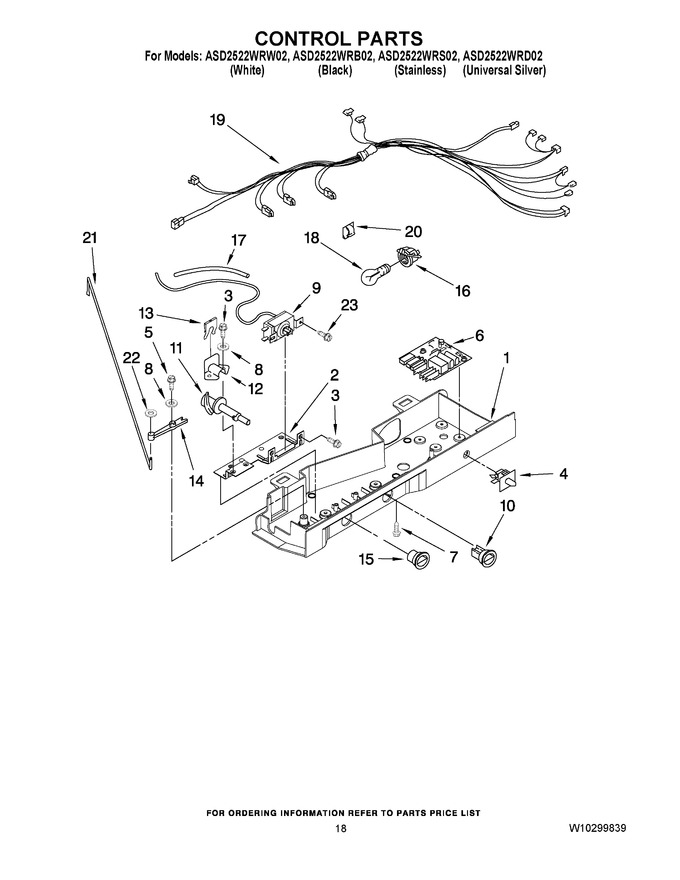

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10159858 | Control Box |
|
- | |||||
| 2 | 2311611 | Mounting Bracket |
|
- | |||||
| 3 | WP3196557 | Screw (4) (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 4 | WP2149705 | Light Switch (Replaces: 2219875) |
|
Immediately | $ 40.40 | ||||
| 5 | 627068 | Screw |
|
$ 12.12 | |||||
| 6 | WPW10366605 | Control Board Assembly (Replaces: W10135899) |
|
Immediately | $ 276.28 | ||||
| 7 | 489392 | Screw (2) (Replaces: 489398) |
|
$ 13.35 | |||||
| 8 | 489203 | Spring Washer |
|
- | |||||
| 9 | WP2198202 | Thermostat Assembly (Replaces: 2198202) |
|
Immediately | $ 78.43 | ||||
| 10 | W10723843 | Thermostat Knob (Replaces: 2311614) |
|
$ 26.59 | |||||
| 11 | WP2182195 | Cam Assembly (Replaces: 2182195) |
|
$ 5.13 | |||||
| 12 | 1110560 | Bearing Body |
|
$ 10.76 | |||||
| 13 | WP2196062 | Clip, Damper Control (Replaces: 2196062) |
|
$ 10.71 | |||||
| 14 | 1110559 | Pivot Arm |
|
$ 8.35 | |||||
| 15 | 2311615 | Knob, Air Control |
|
$ 49.77 | |||||
| 16 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 17 | WP2196003 | Thermostat, Barrier (Replaces: 2196001) |
|
$ 7.95 | |||||
| 18 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 19 | 2311632 | Control Box Harness |
|
$ 165.96 | |||||
| 20 | WP1115374 | Clip, Wiring (Replaces: 1115374) |
|
$ 7.75 | |||||
| 21 | 2311631 | Connecting Rod |
|
- | |||||
| 22 | 489285 | Fastener, Push-on |
|
- | |||||
| 23 | WP965173 | Screw (Replaces: 487869) |
|
Immediately | $ 10.72 |
