Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10234231 Refrigerator Door (includes Item 5) (black) Appelez-nous -
1 W10180652 Refrigerator Door (includes Item 5) (stainless) Appelez-nous -
1 W10187137 Refrigerator Door (includes Item 5) (universal Silver) Appelez-nous -
1 W10234230 Refrigerator Door (includes Item 5) (white) Appelez-nous -
2 WP2256101 Door, Compartment   (Replaces: 2256101) In-Stock Immediately $ 85.16

3 WP67006197 Screw   (Replaces: 12990202) Special Order $ 8.06

4 WPW10321304 Door Bin (3) (stainless)   (Replaces: 2304235) In-Stock Immediately $ 44.73

4 WP2187172 Door Bin (3) (white, Black, & Universal Silver)   (Replaces: 2187172) In-Stock Immediately $ 45.09

5 2159083 Door Gasket, Magnetic (black)   (Replaces: 2309529) Special Order $ 251.49

5 2159075 Door Gasket, Magnetic (white)   (Replaces: 2309528) In-Stock Immediately $ 317.14

6 WPW10179168 Handle (white)   (Replaces: W10179168) Special Order $ 163.25

6 W10119665 Handle (black, Also On Universal Silver) Special Order $ 75.66

7 WP2182181 Thimble, Top   (Replaces: 2308091) Special Order $ 7.76

8 13067102SP Clip Special Order $ 27.57

9 WP2182179 Door Closer,   (Replaces: 2182178) In-Stock Immediately $ 6.39

10 WP489483 Screw   (Replaces: 489420) Special Order $ 10.87

11 2321218W Bracket, Door Stop (white) Appelez-nous -
11 W10185571 Bracket, Door Stop (black) Appelez-nous -
12 2325418 Nameplate Special Order $ 44.68

13 WPW10288153 Screw   (Replaces: 2326016) In-Stock Immediately $ 8.69

14 WP2309941 Trivet   (Replaces: 2309941) In-Stock Immediately $ 76.32

15 WP3400012 Screw   (Replaces: 3400012) Special Order $ 7.82

16 W11690159 Handle For Stainless Model   (Replaces: 67006391) Special Order $ 165.49

17 WPW10170540 Stud   (Replaces: 2326259) In-Stock Immediately $ 8.51

18 WP488163 Screw   (Replaces: 488208) Special Order $ 7.54

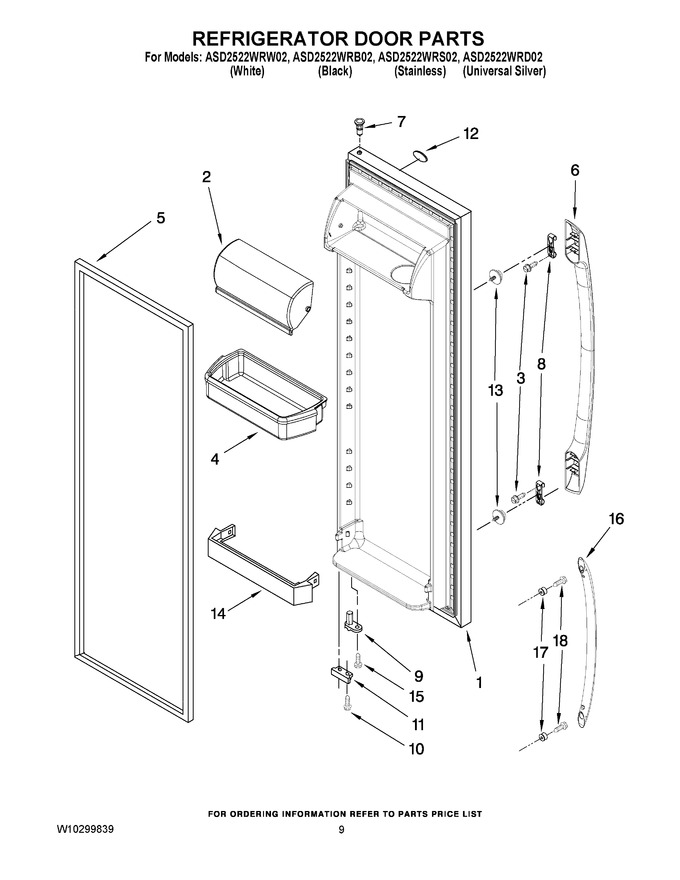

    View Diagram in Separate Window     Print Icon   Print Part List
