SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts

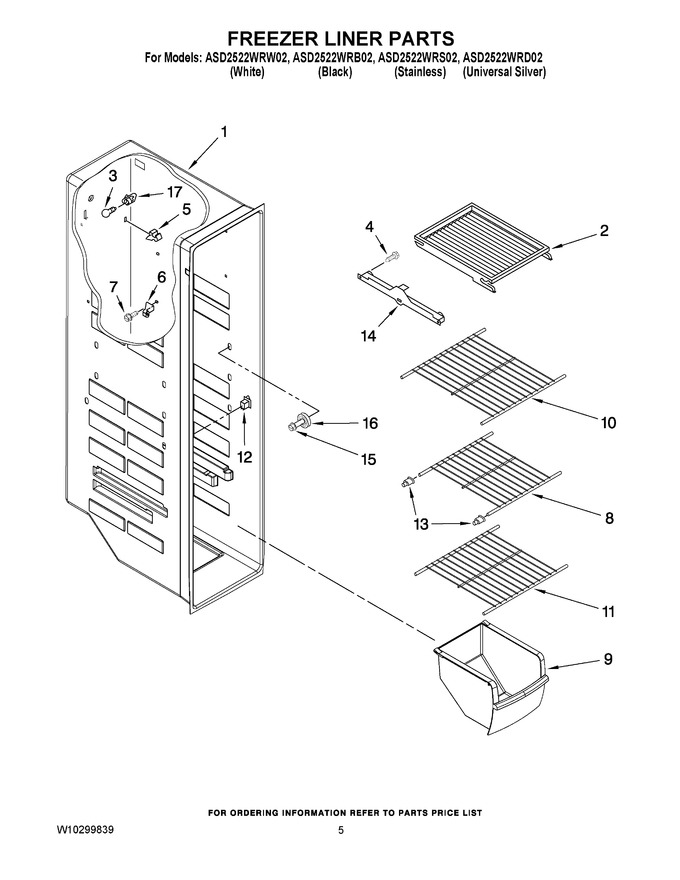

04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Asevice Able Part)		Appelez-nous	-
2	2171714		Shelf, Top Compartment		Appelez-nous	-
3	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
4	718257		Screw   (Replaces: 489100)		Appelez-nous	-
5	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
6	2196206		Support, Stud (4)		Appelez-nous	-
7	W10142289		Screw   (Replaces: 3400893)				$ 9.15
8	WPW10318948		Shelf, Wire   (Replaces: W10276762)				$ 147.84
9	W11577967		Freezer Bin   (Replaces: 2309757)				$ 91.71
10	WPW10318947		Shelf, Wire   (Replaces: W10276761)				$ 87.44
11	W10276759		Shelf, Wire		Appelez-nous	-
12	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
13	WPW10130299		Cup, Shelf Mount   (Replaces: W10130299)			Immediately	$ 14.00
14	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
14	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
15	W10191952		Screw				$ 5.65
16	W11527119		Stud Assembly (4)   (Replaces: W10173127)		Appelez-nous	-
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16

    View Diagram in Separate Window       Print Part List
