01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts

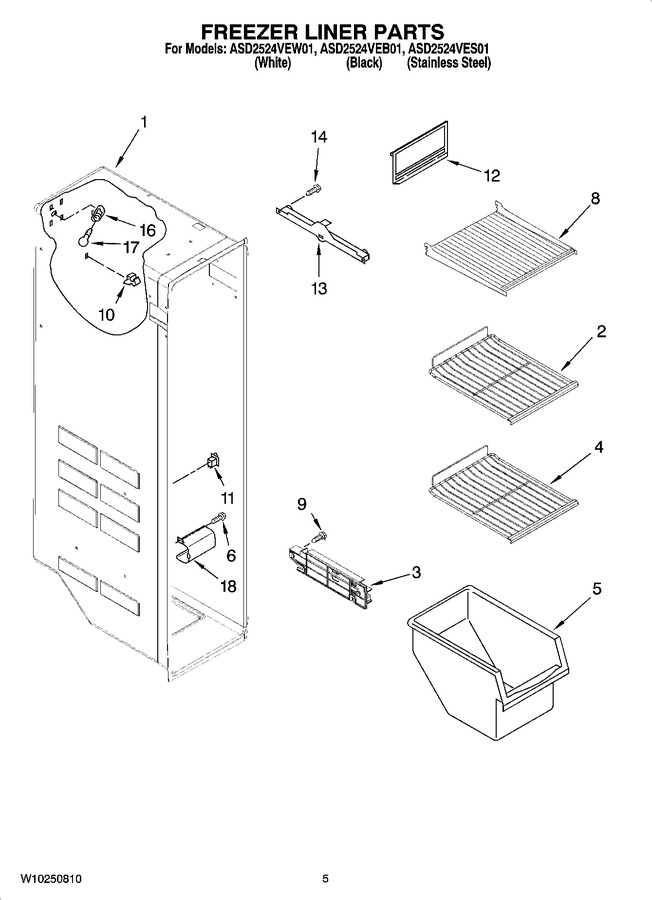

04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2171714K		Shelf, Slide Out Upper		Appelez-nous	-
3	2261448		Track, Basket-dual (left)				$ 46.07
3	2261449		Track, Basket-dual (right)				$ 46.07
4	2174268K		Shelf, Slide Out		Appelez-nous	-
5	WP2182971		Freezer Bin   (Replaces: 2182971)				$ 140.21
6	W10142289		Screw   (Replaces: 3400893)				$ 9.15
8	WP2174267		Shelf   (Replaces: 2174267K)				$ 88.90
9	W10759522		Screw (8)   (Replaces: W10004810)				$ 7.75
10	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
11	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
12	WP2171713		Door, Ice Comp   (Replaces: 2171713K)				$ 87.27
13	W10845583		Slide, Ice Maker Mounting (right Side)   (Replaces: 1119293)				$ 123.92
13	W10845585		Slide, Ice Maker Mounting (left Side)   (Replaces: 1119237)				$ 132.77
14	WP489478		Screw,   (Replaces: W10001260)				$ 7.75
16	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
17	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
18	2171705		Light Lens				$ 94.68
