01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts

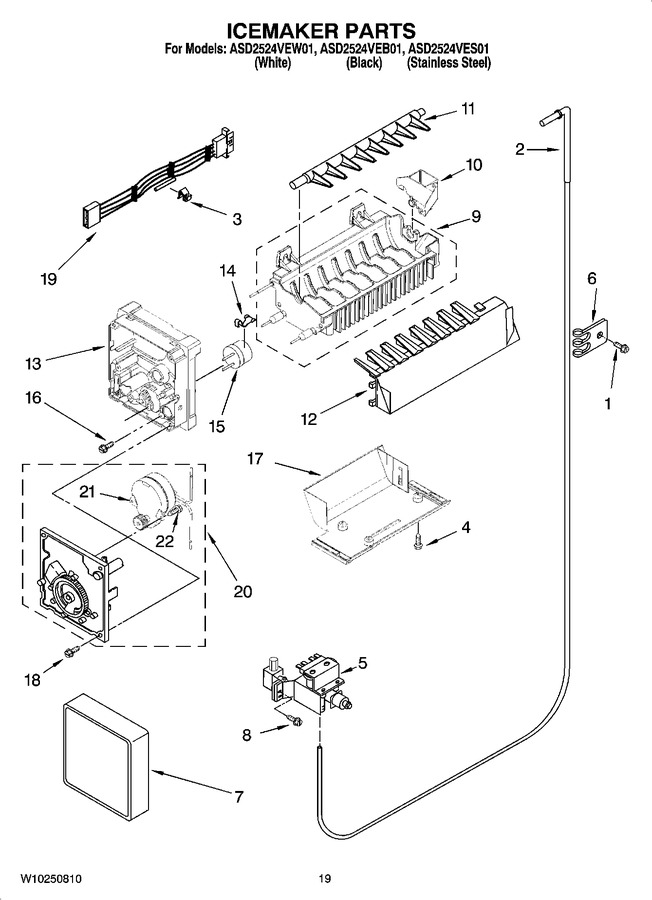

12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
2	W11505385		Fitting, Water Tube   (Replaces: 2209774)				$ 35.32
3	WP628379		Clip, Fuse   (Replaces: 628379)				$ 11.10
4	WP489478		Screw,   (Replaces: W10001260)				$ 8.18
5	W10408179		Filter Valve Asm   (Replaces: 2188708)			Immediately	$ 96.38
6	WP488366		Clip, Tube   (Replaces: 2208136)				$ 11.92
7	WPW10289690		Cover   (Replaces: 2174155)			Immediately	$ 8.82
8	WPW10141625		Screw   (Replaces: 488649)				$ 22.22
9	WPW10190929		Mold & Heater Assembly (also Order 542638 Silicone Grease)   (Replaces: W10122527)				$ 233.15
10	W10122561		Cup-water Fill				$ 29.16
11	WPW10122563		Ejector   (Replaces: W10122563)				$ 99.42
12	WP2182124		Ice Stripper   (Replaces: 2182124)				$ 90.35
13	WP2195914		Support   (Replaces: 2194712)				$ 109.80
14	WP2315522		Retainer,thermostat   (Replaces: 2315522)				$ 11.60
15	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 628397)				$ 114.64
16	8533917		Screw				$ 14.04
17	W11500948		Bracket, Ice Maker Mounting   (Replaces: 628320)			Immediately	$ 33.78
18	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
19	WP2187464		Harness, Wiring   (Replaces: 2187464)				$ 130.80
20	8201515		Module Assembly (includes Items 21 & 22)   (Replaces: 626691)			Immediately	$ 141.64
21	8201515		Motor   (Replaces: 626683)			Immediately	$ 141.64
22	489136		Screw				$ 10.80
100	WPW10190965		Icemaker Assembly   (Replaces: W10190966)			Immediately	$ 105.08
NI	1117510		Torx Key				$ 5.84
NI	542639		Cement, Alumilastic (1-1/4 Oz.)		Appelez-nous	-
NI	WP542638		Grease, Silicone (1/2 Oz)   (Replaces: 542638)			Immediately	$ 12.78
NI	WP503695		Cork Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
NI	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 182.65
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	4392901		Paint, Bulk (1 Qt.) (biscuit)		Appelez-nous	-
NI	350942		Paint, Bulk (1 Qt.) (primer, White)				$ 94.14
NI	285006		Paint, Bulk (1 Qt.) (black)   (Replaces: 350939)				$ 59.89
NI	350930		Paint, Bulk (1 Qt.) (white)			Immediately	$ 40.12
NI	8171357		Paint, Bulk (1 Qt.) (graphite)				$ 86.43
NI	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
NI	80051		Paint, Touch-up (1/2oz.) (graphite)				$ 7.64
NI	799340		Paint, Bulk (1 Qt.) (black)		Appelez-nous	-
NI	799344		Paint, Bulk (1 Qt.) (white)				$ 237.46
NI	4392900		Paint, Bulk (1 Qt.) (biscuit)		Appelez-nous	-
NI	8171358		Paint, Bulk (1 Qt.) (graphite)		Appelez-nous	-
NI	4210463RW		Coil Brush   (Replaces: 8129)			Immediately	$ 29.82
NI	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
NI	479502		Tape, Vinyl(3/4 X 108``)				$ 66.77
NI	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
NI	833938		Kit, Terminal Connector				$ 8.47
