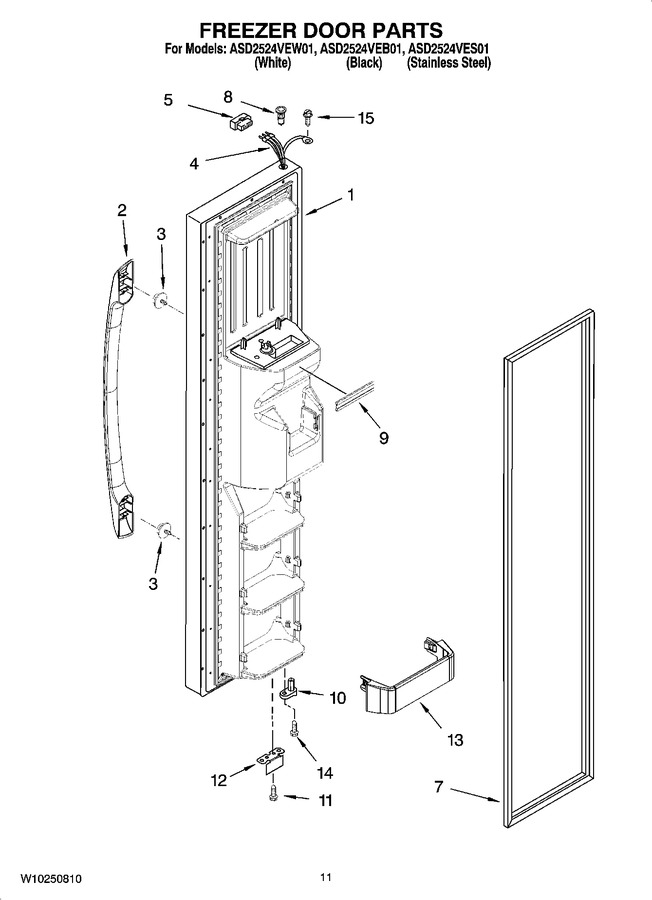

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10169443		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10169444		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	W10169442		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10179171		Handle, Assy (white)				$ 77.64
2	W10179169		Handle, Assy (black)				$ 72.25
2	W11690159		Handle, Assy (stainless)   (Replaces: W10136871)				$ 173.76
3	WPW10288153		Screw, Mounting   (Replaces: 2326016)			Immediately	$ 9.65
4	WPW10193328		Dispenser Harness   (Replaces: W10167528)				$ 134.19
5	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
7	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
7	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
8	WP2182181		Thimble-top (for Stainless Steel Model)   (Replaces: 2308091)				$ 8.15
8	2301049		Thimble-top (for White, Black, Biscuit And Stainless Vcm Models)				$ 75.42
9	2313199		Trim, Door Shelf   (Replaces: 2313199K)				$ 90.93
10	2323535		Door Closer, Upper Cam				$ 33.97
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
12	2323534		Bracket, Door Stop (chrome)		Appelez-nous	-
13	WP2174267		Trivet-fc   (Replaces: 2174267K)				$ 93.35
14	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
15	WPW10141604		Screw   (Replaces: W10141604)				$ 8.85
