01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts

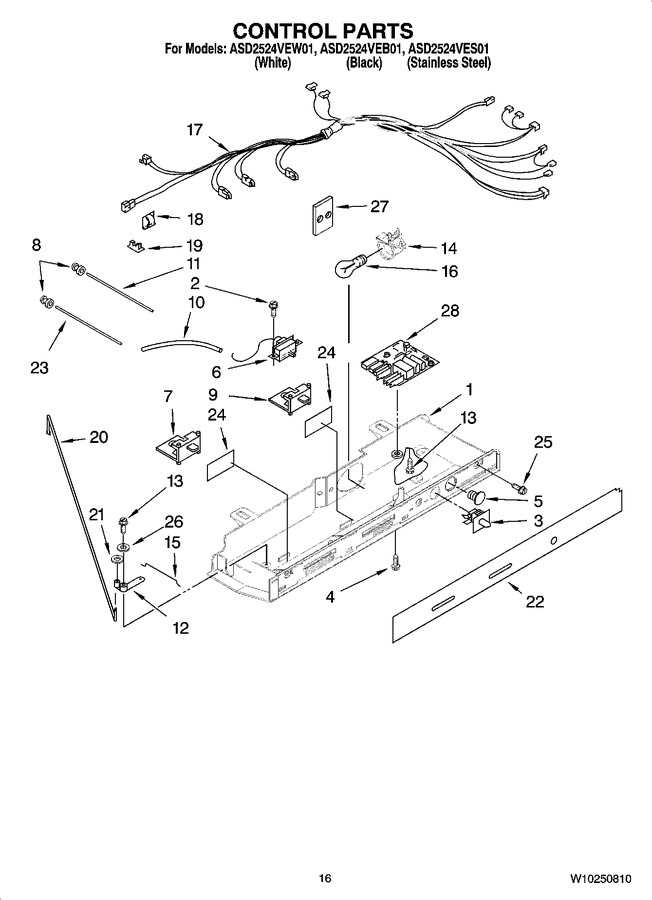

10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2181738		Control Box		Appelez-nous	-
2	2006254		Screw (2)   (Replaces: 489214)				$ 13.13
3	WP2149705		Switch, Light   (Replaces: 2149705)			Immediately	$ 40.40
4	489392		Screw (2)   (Replaces: 489398)				$ 13.35
5	940014		Hole Plug				$ 18.33
6	WP2315562		Thermostat   (Replaces: 2315562)			Immediately	$ 106.18
7	2181741		Slide, Air Control				$ 90.49
8	2172906		Grommet, Light Bar (4)		Appelez-nous	-
9	2161466		Slide, Thermostat				$ 21.22
10	WP2196003		Tube Barrier   (Replaces: 2196001)				$ 7.95
11	2179920		Light Bar (rc)				$ 37.08
12	2161306		Pivot Arm				$ 9.65
13	627068		Screw				$ 12.12
14	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
15	2161307		Connecting Rod, Short		Appelez-nous	-
16	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
17	2187868		Control Box Harness		Appelez-nous	-
18	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
19	1115375		Clip-wiring				$ 11.15
20	2161308		Connecting Rod				$ 172.11
21	489391		Fastner, Push-on				$ 7.52
22	W10176424		Escutcheon, Control Box		Appelez-nous	-
23	2179921		Light Bar (fc)		Appelez-nous	-
24	2175513		Window		Appelez-nous	-
25	WPW10141645		Screw (2)   (Replaces: W10141645)				$ 7.67
26	489203		Spring Washer		Appelez-nous	-
27	2172931		Heat Shield				$ 70.38
28	4388932		Control, Elec   (Replaces: 2303824)			Immediately	$ 267.09
