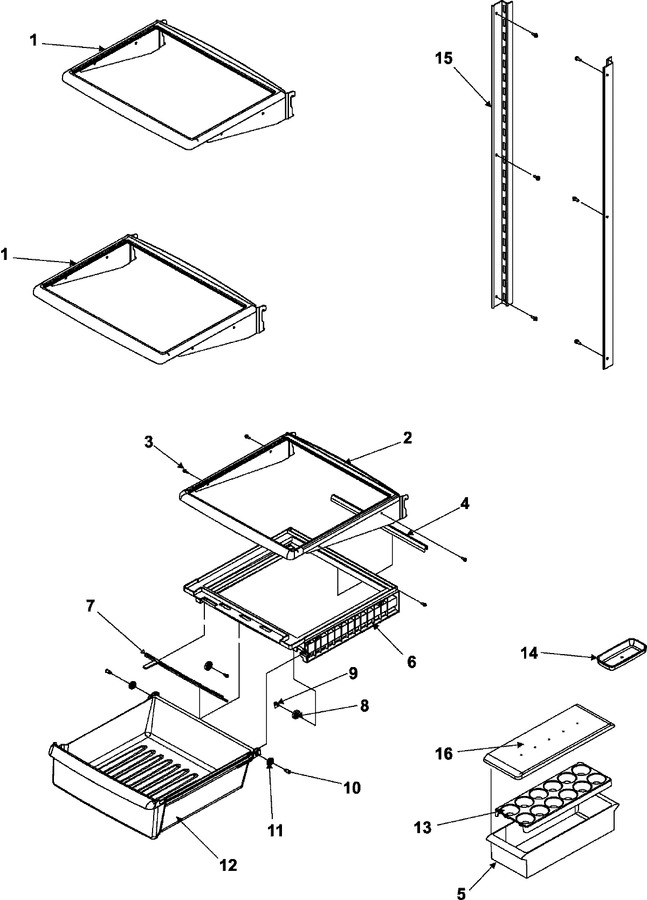

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004128		Shelf, Ref Glide	50	Appelez-nous	-
2	67006499		Shelf, Ref Sta	50	Appelez-nous	-
3	W11233072		Screw   (Replaces: 67006626)	50		Immediately	$ 14.02
4	67004305		Seal, Crisper Frame (rear)	50	Appelez-nous	-
5	10423131		Bin, Utility	50			$ 31.13
6	67004448		Frame, 36`` Adj Crisper	50	Appelez-nous	-
7	67006690		Slide, Control (wht)	50	Appelez-nous	-
8	67004169		Roller, Crisper	50			$ 5.81
9	67006692		Screw	50			$ 10.28
10	67004174		Pin, Roller	50			$ 6.11
11	67004133		Roller, Pan	50	Appelez-nous	-
12	67003892		Pan, Adj Crisper	50	Appelez-nous	-
13	10436506		Tray, Egg	50			$ 8.28
14	67004412		Tray, Butter	50	Appelez-nous	-
15	67003840		Rail, L/r Lg Sxs	50	Appelez-nous	-
16	10436404		Lid, Utility	50			$ 60.85
