SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Crisper Assy


04 - Deli And Ref Shelf


05 - Elec Control And Toe Grille


06 - Evap Fan Assy And Controls


07 - Evaporator Assy And Rollers


08 - Freezer Door


09 - Fz Door And Facade


10 - Fz Shelf


11 - Handles And Trim (asd2627kes)


12 - Hinges


13 - Ice Bucket Assy


14 - Ice Maker


15 - Lights And Ice Maker


16 - Refrigerator Door


17 - Supplemental Information


18 - Wiring Information

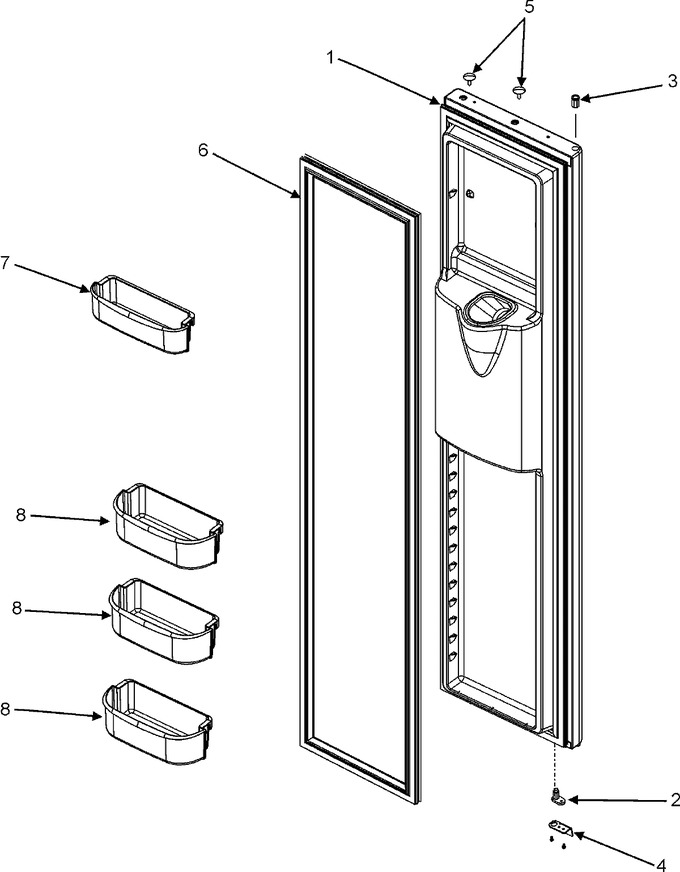

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006745		Door Assy., Frz. Foam (stnls)	50	Appelez-nous	-
2	67006677		Closure, Door (blk)	50	Appelez-nous	-
3	12395501B		Bushing, Door (blk)	50	Appelez-nous	-
4	67007020		Stop, Door (blk)	50	Appelez-nous	-
4	WP489483		Screw   (Replaces: 67006492)	50			$ 10.87
5	M0311607		Plug, Button (gry)	50	Appelez-nous	-
6	W10133491		Gasket, Frz. Door (blk)   (Replaces: 67003967)	50			$ 342.75
7	67004772		Bucket, Upr Fz Dr	50	Appelez-nous	-
8	12557501		Bucket, Lwr Fz Dr	50			$ 17.64

    View Diagram in Separate Window       Print Part List
