Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67006719 Handle, Door (stnls) 50 Appelez-nous -
2 WP67006113 Mount, Handle   (Replaces: 67006113) 50 In-Stock Immediately $ 11.96

3 Y12528501 Nameplate (amana Plus) 50 In-Stock Immediately $ 59.75

4 WP3387230 Screw, Mount   (Replaces: 67002935) 50 In-Stock Immediately $ 8.54


    View Diagram in Separate Window     Print Icon   Print Part List

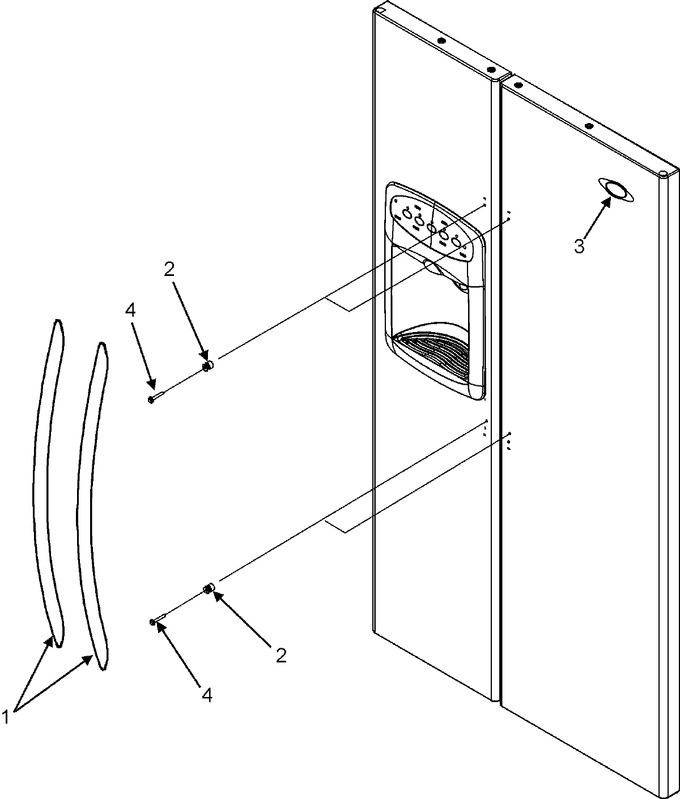

Diagram for ASD2627KES
