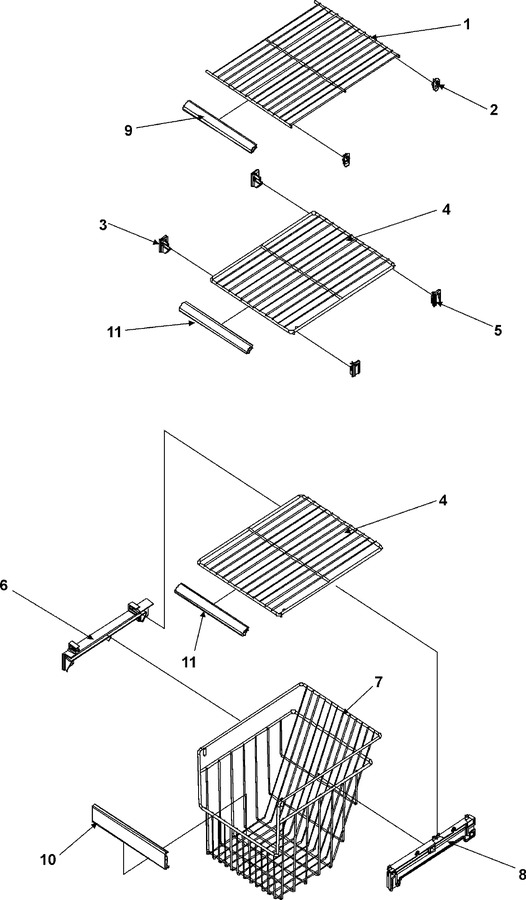

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004354		Shelf, Upr Frz.	50	Appelez-nous	-
2	C8973701		Plug, Frz Shelf Support	50	Appelez-nous	-
2	C8973801		Support, Frz Shelf	50			$ 8.35
3	12015002		Support, Shelf (lt)	50			$ 7.38
4	67004690		Shelf, Lwr Frz.	50	Appelez-nous	-
5	WP10941102		Support, Shelf (rt)	50			$ 11.81
6	67004182		Rail, Basket (lt)	50	Appelez-nous	-
7	67006234		Basket, 26`` Lwr Fz Wxs/sxs	50	Appelez-nous	-
8	67004179		Rail, Basket (rt)	50	Appelez-nous	-
9	67004181		Trim, Frz Shelf	50	Appelez-nous	-
10	10508510		Handle, Basket	50	Appelez-nous	-
11	12314101		Trim, Basket/shelf	50	Appelez-nous	-
