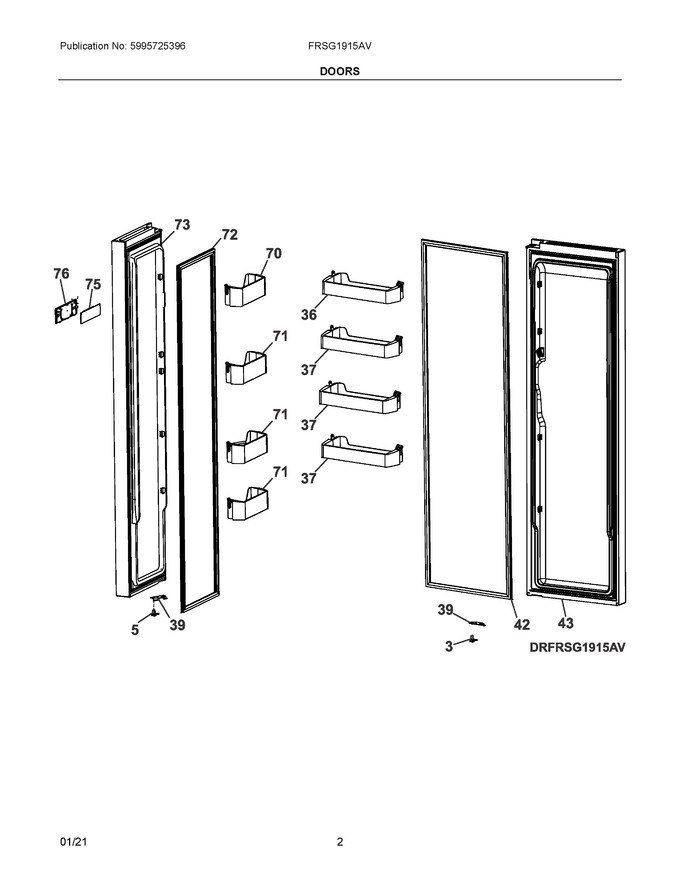

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	4056054853		Closer, Door, Rh   (Replaces: 5304525323)		Appelez-nous	-
5	4056054861		Closer, Door, Lh   (Replaces: 5304525325)		Appelez-nous	-
36	5304525346		Door Rack, Fresh Food, Upper		Appelez-nous	-
37	5304525347		Door Rack, Fresh Food, Lower		Appelez-nous	-
39	5304525348		Stop, Door		Appelez-nous	-
42	5304525351		Gasket, Fresh Food, Rh Door		Appelez-nous	-
43	5304525352		Door Assembly, Complete, Fresh Food		Appelez-nous	-
70	5304525368		Door Rack, Freezer, Upper		Appelez-nous	-
71	5304525369		Door Rack, Freezer, Lower		Appelez-nous	-
72	5304525370		Gasket, Freezer, Rh Door		Appelez-nous	-
73	5304525371		Door Assembly, Complete, Freezer		Appelez-nous	-
75	5304525372		Pc Board, Display		Appelez-nous	-
76	5304525373		Overlay, Display Board		Appelez-nous	-
NI	5304525388		Tray, Egg		Appelez-nous	-
