SELECT A DIAGRAM

01 - Cover Sheet


02 - Doors

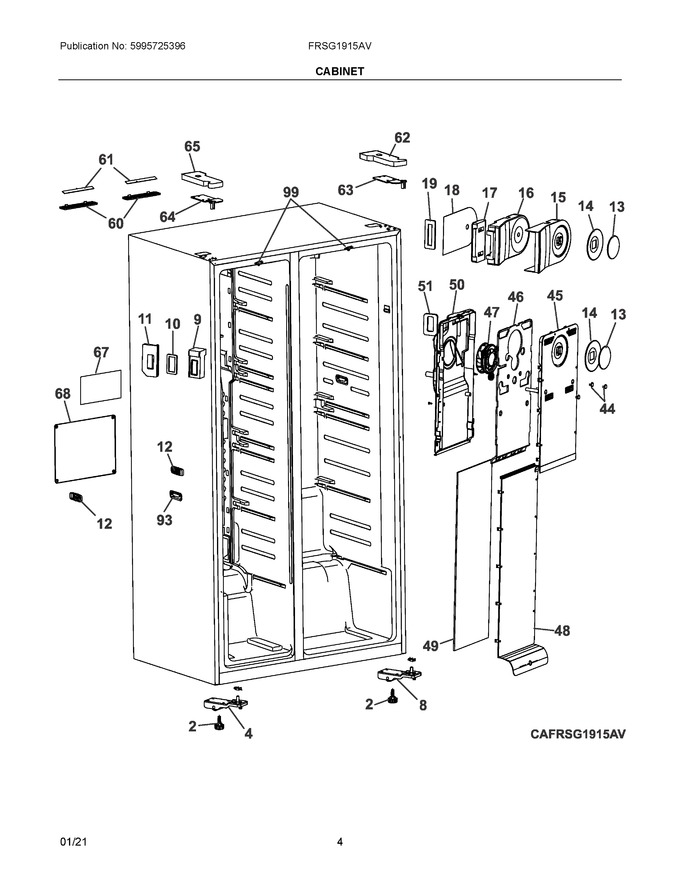

03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304525322		Foot, Cabinet, Adjustable		Appelez-nous	-
4	5304525324		Hinge Assembly, Door, Lower Lh		Appelez-nous	-
8	5304525326		Hinge Assembly, Door, Lower Rh		Appelez-nous	-
9	5304525327		Damper, Motorized		Appelez-nous	-
10	5304525328		Seal, Damper		Appelez-nous	-
11	5304525329		Insulation, Damper Fixation		Appelez-nous	-
12	5304525330		Cover, Temp Thermostat		Appelez-nous	-
13	5304533211		Cover, Air Deflector   (Replaces: 5304525331)		Appelez-nous	-
14	5304525332		Deflector, Air		Appelez-nous	-
15	5304525333		Cover, Air Duct, Fresh Food		Appelez-nous	-
16	5304525334		Insulation, Air Duct, Fresh Food, Front		Appelez-nous	-
17	5304525335		Insulation, Air Duct, Fresh Food, Rear		Appelez-nous	-
18	5304525336		Cover, Air Duct, Fresh Food, Back		Appelez-nous	-
19	5304525337		Seal, Air Duct, Fresh Food		Appelez-nous	-
44	5304518561		Cap, Screw		Appelez-nous	-
45	5304525353		Coil Cover, Freezer, Upper		Appelez-nous	-
46	5304525354		Insulation, Coil Cover, Upper		Appelez-nous	-
47	4056022561		Fan, Blower   (Replaces: 5304521548)			Immediately	$ 128.71
48	5304525355		Coil Cover, Freezer, Lower		Appelez-nous	-
49	5304525356		Insulation, Coil Cover, Lower		Appelez-nous	-
50	5304525357		Housing, Air Duct, Freezer		Appelez-nous	-
51	5304525358		Seal, Air Duct, Freezer		Appelez-nous	-
60	5304525360		Lens, Led Light, Upper		Appelez-nous	-
61	5304525361		Pc Board, Led Light		Appelez-nous	-
62	5304534460		Cover, Hinge, Upper Rh   (Replaces: 5304525362)		Appelez-nous	-
63	5304525363		Hinge, Door, Upper Rh		Appelez-nous	-
64	5304525364		Hinge, Door, Upper Lh		Appelez-nous	-
65	5304525365		Cover, Hinge, Upper Lh		Appelez-nous	-
67	5304525366		Pc Board, Main Control		Appelez-nous	-
68	5304525367		Cover, Pc Board		Appelez-nous	-
93	5304525383		Sensor, Temperature		Appelez-nous	-
99	5304525387		Switch, Door				$ 76.55
NI	5304525389		Ice Maker, Box Assembly		Appelez-nous	-
NI	5304525359		Cover, Machine Comprt., Rear Cabinet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
