New Model Search:

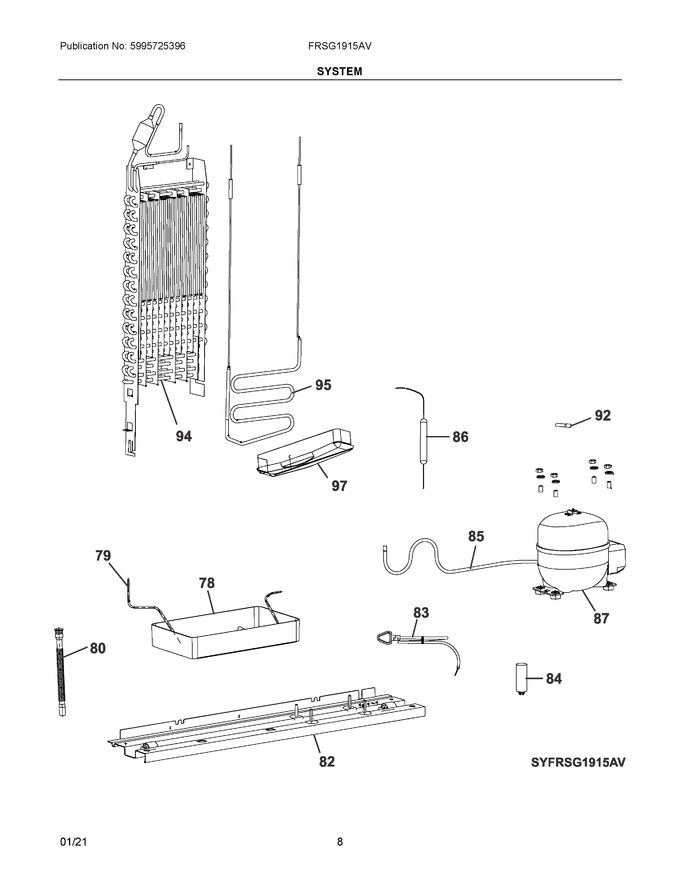

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 78 | 5304525374 | Tray, Defrost Drain |
|
- | |||||
| 79 | 5304525375 | Condenser, Evaporative, Drain Tray |
|
- | |||||
| 80 | 5304525376 | Tubing, Defrost Drain |
|
- | |||||
| 82 | 5304525377 | Base Assembly, Compressor |
|
- | |||||
| 83 | 5304525378 | Cord, Power, Electric Servic |
|
- | |||||
| 85 | 5304521528 | Pipe, Suction |
|
Immediately | $ 73.84 | ||||
| 86 | 5304525379 | Drier, Filter |
|
- | |||||
| 87 | 5304525380 | Compressor, Assembly |
|
- | |||||
| 92 | 5304525382 | Tube, Process |
|
- | |||||
| 94 | 5304525384 | Evaporator, Assembly |
|
- | |||||
| 95 | 5304525385 | Heater, Evap Defrost, W/fuse |
|
- | |||||
| 97 | 5304525386 | Trough, Drain, Evaporator |
|
- | |||||
| NIA | 5304525381 | Wire, Grounding, Compressor |
|
- |
