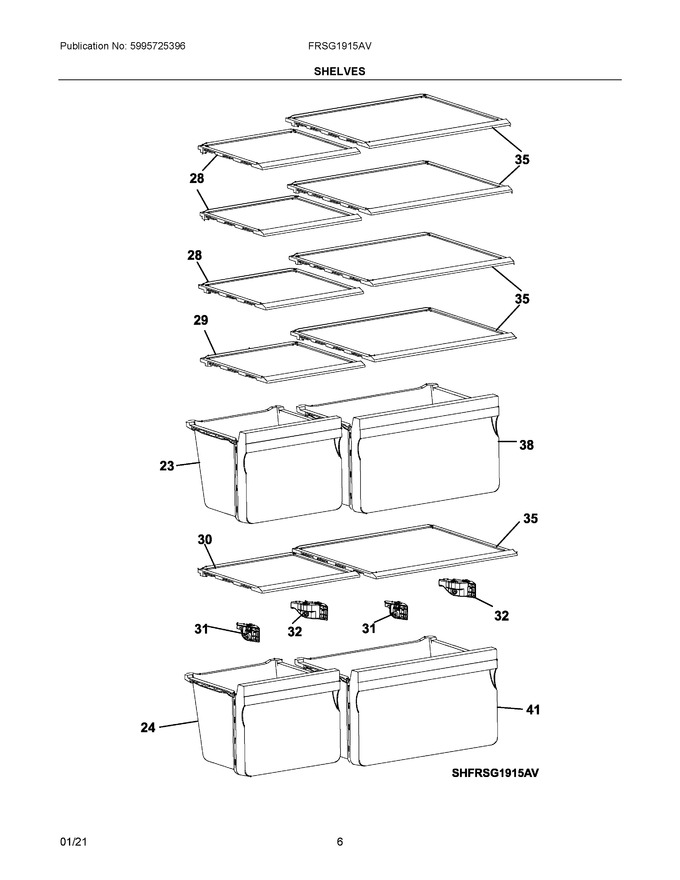

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	5304525338		Drawer Assembly, Freezer, Upper		Appelez-nous	-
24	5304525339		Drawer Assembly, Freezer, Lower		Appelez-nous	-
28	5304525340		Shelf Assembly, Freezer, Upper		Appelez-nous	-
29	5304525341		Shelf Assembly, Freezer, Middle		Appelez-nous	-
30	5304525342		Shelf Assembly, Freezer, Lower		Appelez-nous	-
32	5304525343		Guide, Rh		Appelez-nous	-
33	5304525344		Guide, Lh		Appelez-nous	-
35	5304525345		Shelf Assembly, Fresh Food		Appelez-nous	-
38	5304525349		Drawer Assembly, Fresh Food, Upper		Appelez-nous	-
41	5304525350		Drawer Assembly, Fresh Food, Lower		Appelez-nous	-
