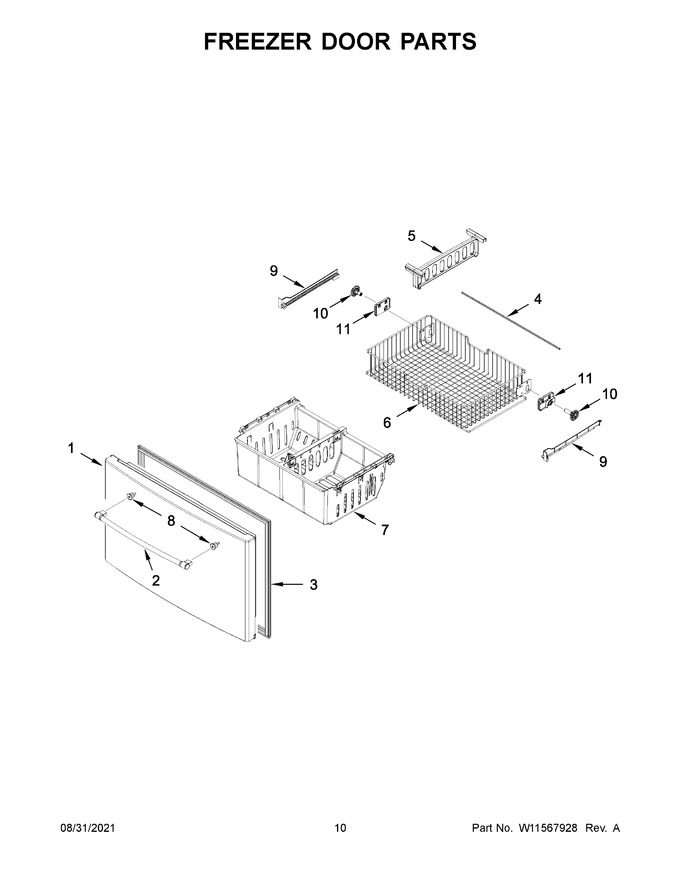

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10862408		Door, Freezer (white)   (Replaces: W10857732)				$ 1,256.34
2	W10920991		Handle, Door (white)   (Replaces: W10891393)				$ 198.18
3	WPW10443321		Gasket, Door (white)   (Replaces: W10443321)				$ 342.70
4	W11173556		Shaft, Rack   (Replaces: W10802333)				$ 30.84
5	W10146439		Divider, Upper Basket				$ 31.10
6	W11218042		Basket, Upper   (Replaces: W11115237)				$ 193.74
7	WPW10293682		Bin, Lower   (Replaces: W10293682)				$ 172.55
8	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.45
9	W11489993		Rack, Side (left Hand)   (Replaces: W11309374)				$ 22.34
10	WPW10474716		Spur, Gear (left Hand)   (Replaces: W10474716)			Immediately	$ 30.88
11	W10348259		Mount, Gear (left Hand)				$ 85.59
10A	WPW10474715		Spur, Gear (right Hand)   (Replaces: W10474715)			Immediately	$ 31.20
11A	W10348260		Mount, Gear (right Hand)				$ 85.62
1A	W10862407		Door, Freezer (black)   (Replaces: W10857731)				$ 1,255.83
2A	W10920992		Handle, Door (black)   (Replaces: W10891392)				$ 198.46
3A	WPW10436253		Gasket, Door (black)   (Replaces: W10436253)				$ 343.70
9A	W11489994		Rack, Side (right Hand)   (Replaces: W11309377)				$ 22.34

    View Diagram in Separate Window       Print Part List
